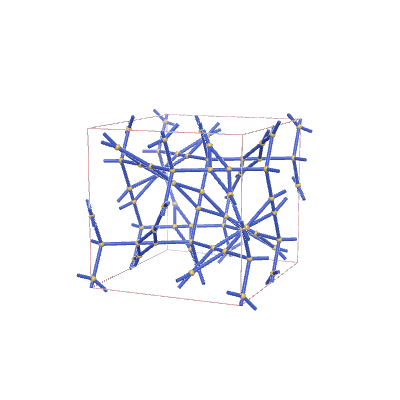

Systre crystallographic geometry file (.cgd) |
topcryst |
Vertices per primitive translational unit | 28 |
Edges per primitive translational unit | 56 |
Transitivity (vertex,edge) | (3,4) |
Vertex degrees | {4,4,4} |
Vertex coordination sequence | [(4, 8, 18, 37, 60, 86, 126, 168, 226, 281), (4, 6, 16, 39, 58, 78, 134, 163, 206, 302), (4, 12, 20, 30, 76, 84, 116, 194, 220, 312)] |
Wells’ vertex symbol | [3^2.4.8^2.9, 3^2.8^3.9, 8^6] |
Systre key | (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 2, 3, 0, 0, 0, 2, 6, 0, 0, 0, 2, 7, 0, 0, 0, 3, 7, 0, 0, 0, 3, 8, 0, 0, 0, 4, 5, 0, 0, 0, 4, 7, 1, 0, 0, 4, 9, 0, 0, 0, 5, 7, 1, 0, 0, 5, 10, 0, 0, 0, 6, 11, 0, 0, 0, 6, 12, 0, 0, 0, 6, 13, 0, 0, 0, 8, 14, 0, 0, 0, 8, 15, 0, 0, 0, 8, 16, 0, 0, 0, 9, 17, 0, 0, 0, 9, 18, 0, 0, 0, 9, 19, 0, 0, 0, 10, 20, 0, 0, 0, 10, 21, 0, 0, 0, 10, 22, 0, 0, 0, 11, 16, 0, 1, 0, 11, 23, 0, 0, 0, 11, 24, 0, 0, 0, 12, 15, 1, 1, 0, 12, 25, 0, 0, 0, 12, 26, 0, 0, 0, 13, 14, 0, 0, 1, 13, 27, 0, 0, 0, 13, 28, 0, 0, 0, 14, 27, 0, 0, -1, 14, 28, 0, 0, -1, 15, 25, -1, -1, 0, 15, 26, -1, -1, 0, 16, 23, 0, -1, 0, 16, 24, 0, -1, 0, 17, 22, 0, 1, -1, 17, 27, 0, 0, -1, 17, 28, 1, 1, -1, 18, 21, 1, 1, -1, 18, 23, 1, 0, -1, 18, 24, 1, 0, 0, 19, 20, 0, 0, -1, 19, 25, 0, -1, 0, 19, 26, 0, 0, -1, 20, 25, 0, -1, 1, 20, 26, 0, 0, 0, 21, 23, 0, -1, 0, 21, 24, 0, -1, 1, 22, 27, 0, -1, 0, 22, 28, 1, 0, 0) |
Spacegroup: I41/acd
Parameters:
a | b | c | alpha | beta | gamma |
---|---|---|---|---|---|
4.6376 | 4.6376 | 5.26254 | 90.0 | 90.0 | 90.0 |
Vertex positions:
X-pos | Y-pos | Z-pos |
---|---|---|
0 | 0.05 | 0.475 |
0.125 | 0.375 | 0.125 |
0 | 0.25 | 0.375 |
Edge end points:
Spacegroup: I41/acd
Parameters:
a | b | c | alpha | beta | gamma |
---|---|---|---|---|---|
4.0027 | 4.0027 | 3.99695 | 90.0 | 90.0 | 90.0 |
Vertex positions:
X-pos | Y-pos | Z-pos |
---|---|---|
0.09788 | 0.07405 | 0.0231 |
0.12442 | 0.37442 | 0.125 |
0.5 | 0.25 | 0.125 |
Edge end points:
Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
---|---|---|---|---|---|
hqc531 | *2224 | (3,3,2) | {4,4,4} | {3.8.8.3}{3.8.3.8}{8.8.8.8} |
