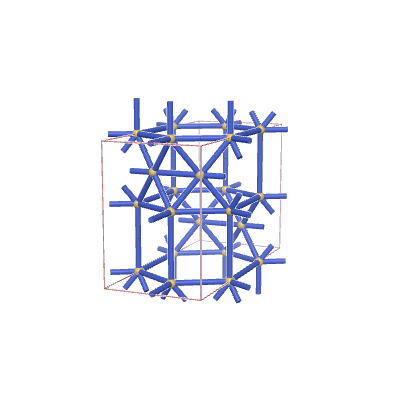

s-net: sqc2913



Systre crystallographic geometry file (.cgd)

Links to this net in other databases

topcryst

Topological data

Vertices per primitive translational unit 6
Edges per primitive translational unit 18
Transitivity (vertex,edge)(2,5)
Vertex degrees {6,6}
Vertex coordination sequence [(6, 14, 40, 66, 102, 158, 214, 262, 352, 424), (6, 19, 40, 70, 110, 155, 213, 275, 349, 431)]
Wells’ vertex symbol [3^6.4^6.5^3, 3^3.4^4.5^6.6^2]
Systre key (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 3, 1, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 1, 6, 0, 0, 0, 2, 3, 0, 1, -1, 2, 4, 0, 1, 0, 2, 5, 0, 1, 0, 2, 6, 0, 0, 1, 2, 6, 1, 0, 1, 3, 4, 0, 0, 0, 3, 5, -1, 0, 0, 3, 6, 0, 0, 1, 4, 5, -1, 0, 0, 4, 5, 0, 0, 0, 4, 6, 0, -1, 1, 5, 6, 1, -1, 1)

Geometric data

Systre equilibrium placement (barycentric embedding) maximising unit cell volume

Spacegroup: Imma

Parameters:

a b c alpha beta gamma
1.78098 2.519 4.11176 90.0 90.0 90.0

Vertex positions:

X-pos Y-pos Z-pos
0.25 0.25 0.25
0 0 0.3125

Edge end points:

Systre coordinates favouring equal edge-lengths

Spacegroup: Imma

Parameters:

a b c alpha beta gamma
1.99392 2.73112 2.05256 90.0 90.0 90.0

Vertex positions:

X-pos Y-pos Z-pos
0.25 0.25 0.25
0 0.56691 0.27319

Edge end points:

Hyperbolic sources

h-nets with faithful topology

1 record listed.
Image h-net name Orbifold symbol Transitivity (Vert,Edge,Face) Vertex Degree 2D Vertex Symbol
Net details hqc988 *222222 (2,5,3) {6,6} {4.3.8.8.3.4}{3.8.8.3.8.8}

h-nets with edge collapse

No items to display.
