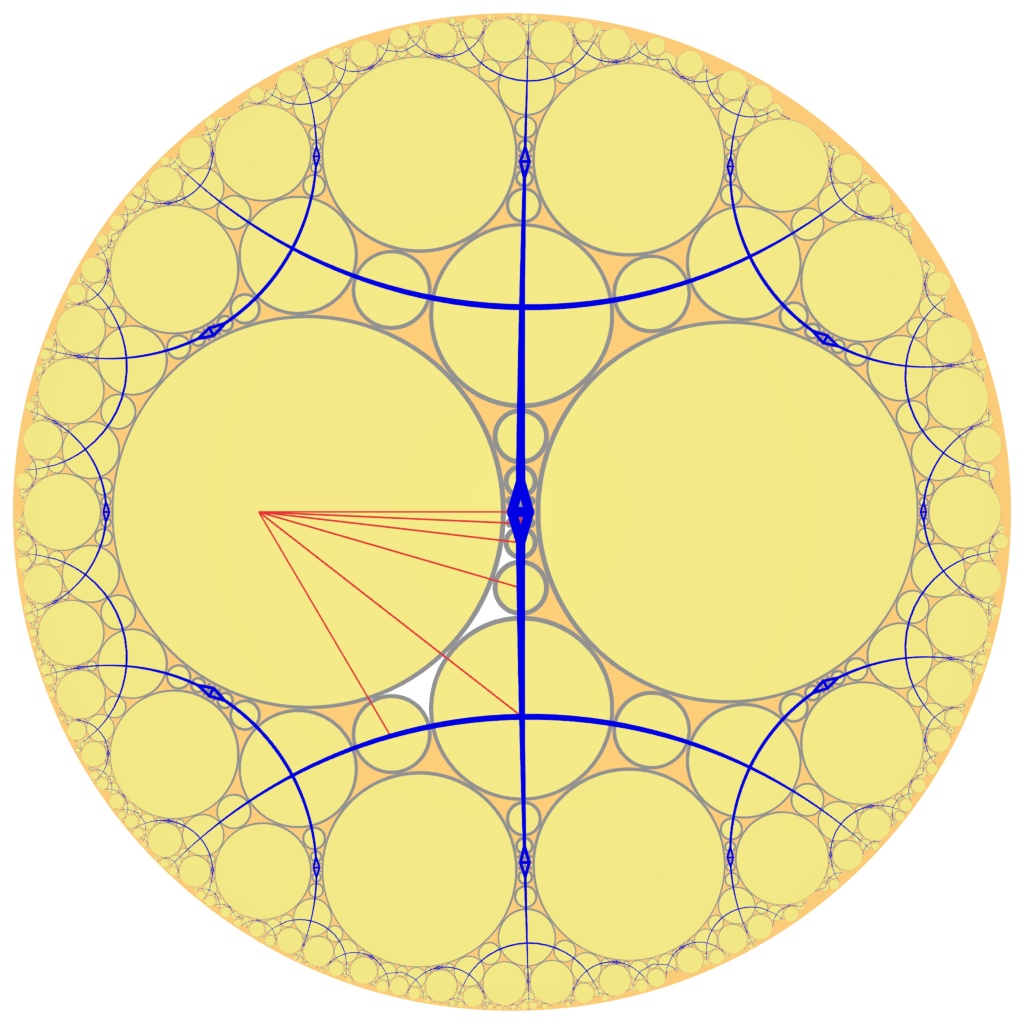

Tiling: QC1694
Topological data
| Orbifold symbol | *2224 |
| Transitivity (vert,edge,face) | (3, 4, 2) |
| Vertex degrees | {3,3,4} |
| Vertex symbol | {3.20.3}{3.20.20}{20.20.20.20} |
| Delaney-Dress symbol | <1694.2:8:1 3 5 7 8,2 3 4 6 8,1 4 5 6 7 8:3 20,3 3 4> |

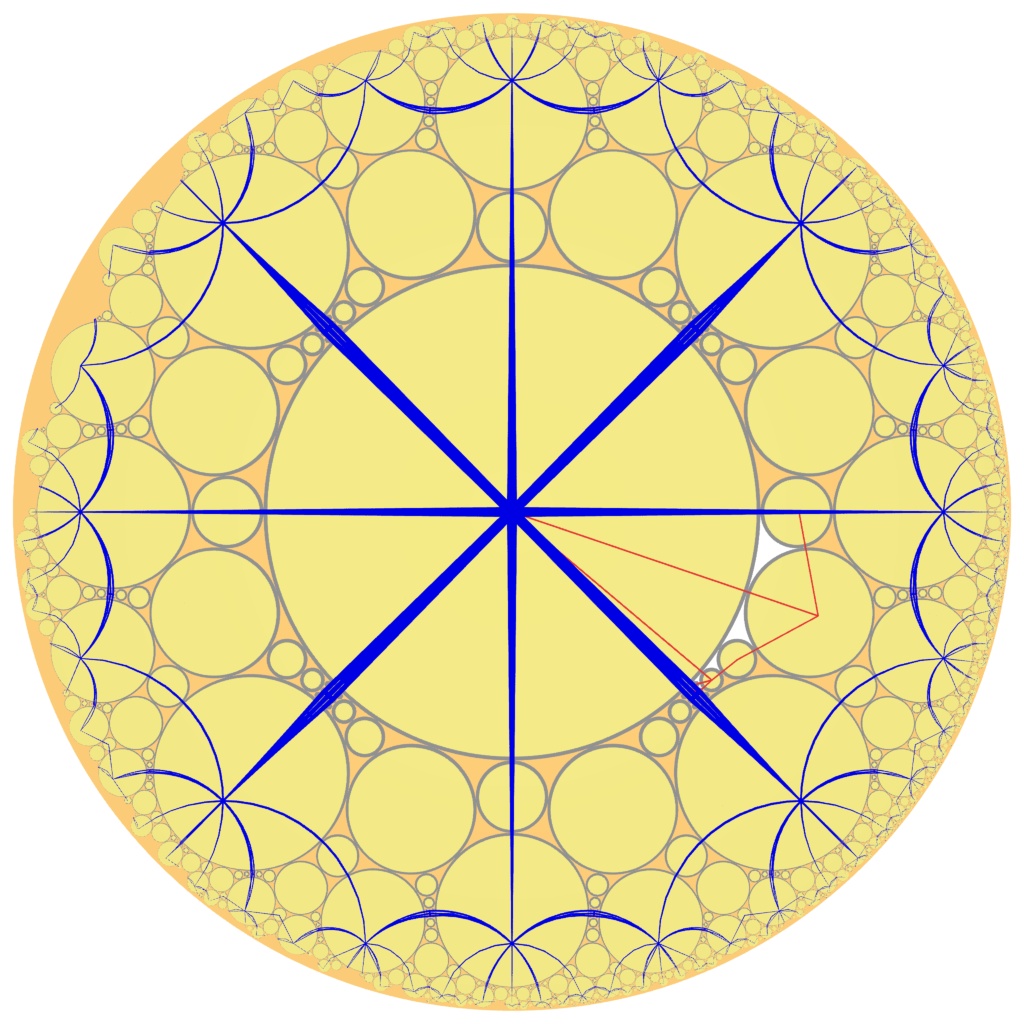

| Dual tiling |  |
| Hyperbolic net |  |
Derived U-tilings
2 records listed.| Image | U-tiling name | PGD Subgroup | Transitivity (Vert,Edge,Face) | Vertex Degree | Vertex Symbol | P net | G net | D net |
|---|---|---|---|---|---|---|---|---|
 |
UQC3649 | *2224 | (3,4,2) | {3,3,4} | {3.20.3}{3.20.20}{20.20.20.20} | No s‑net | No s‑net | No s‑net |
 |
UQC3650 | *2224 | (3,4,2) | {3,3,4} | {3.20.3}{3.20.20}{20.20.20.20} | No s‑net | No s‑net | No s‑net |
