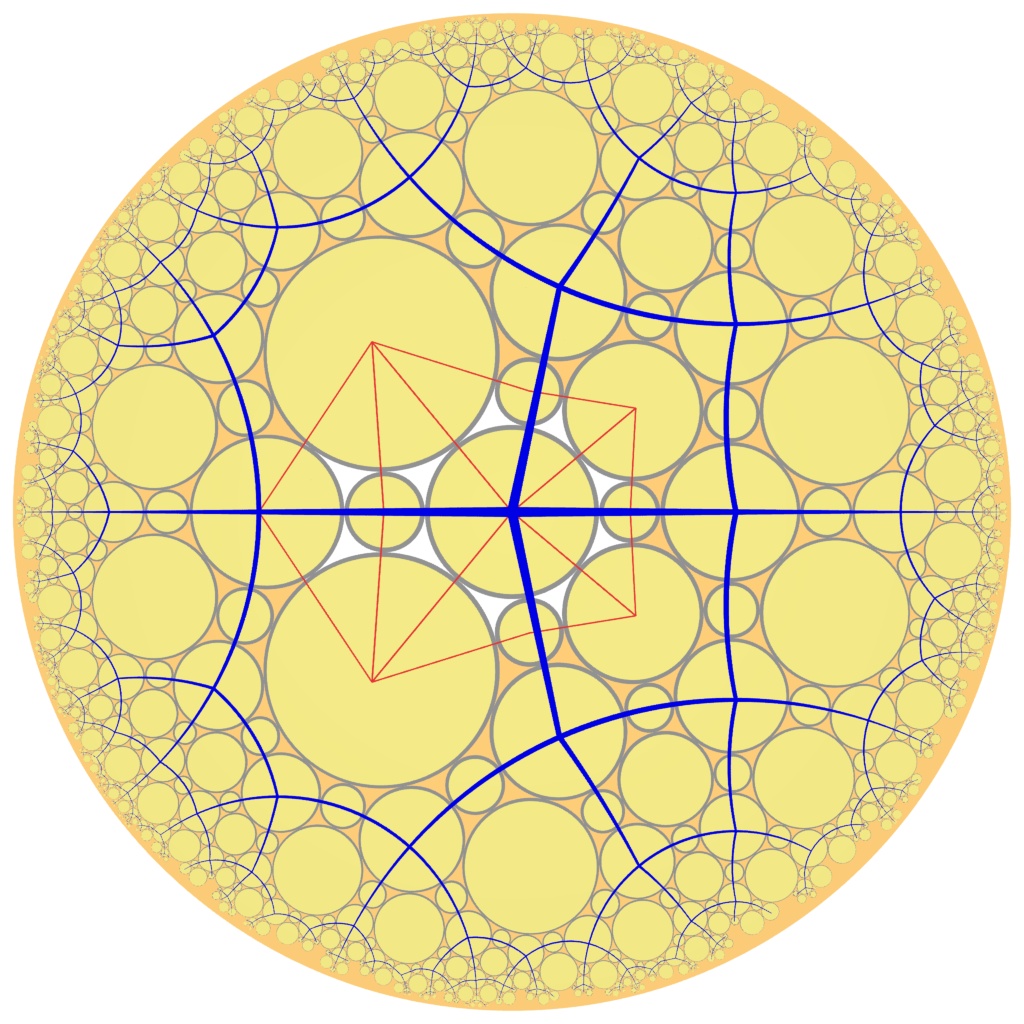

Tiling: QC828
Topological data
| Orbifold symbol | *22222 |
| Transitivity (vert,edge,face) | (2, 4, 4) |
| Vertex degrees | {4,4} |
| Vertex symbol | {4.6.6.4}{6.6.6.6} |
| Delaney-Dress symbol | <828.2:10:1 2 3 4 5 7 9 10,2 4 6 7 10 9,3 10 5 8 9:4 4 6 6,4 4> |
| Dual tiling |  |
| Hyperbolic net |  |
Derived U-tilings
6 records listed.| Image | U-tiling name | PGD Subgroup | Transitivity (Vert,Edge,Face) | Vertex Degree | Vertex Symbol | P net | G net | D net |
|---|---|---|---|---|---|---|---|---|
 |
UQC116 | *2224 | (2,3,2) | {4,4} | {4.6.6.4}{6.6.6.6} |
sqc466
|
sqc9589
|
sqc3658
|
 |
UQC117 | *2224 | (2,3,2) | {4,4} | {4.6.6.4}{6.6.6.6} |
sqc3869
|
sqc9893
|
sqc3837
|
 |
UQC1713 | *22222a | (2,4,4) | {4,4} | {4.6.6.4}{6.6.6.6} |
sqc3847
|
sqc9842
|
sqc3833
|
 |
UQC1714 | *22222b | (2,4,4) | {4,4} | {4.6.6.4}{6.6.6.6} |
sqc3856
|
sqc9899
|
sqc3848
|
 |
UQC1715 | *22222a | (2,4,4) | {4,4} | {4.6.6.4}{6.6.6.6} |
sqc9843
|
sqc9844
|
sqc3834
|
 |
UQC1716 | *22222b | (2,4,4) | {4,4} | {4.6.6.4}{6.6.6.6} |
sqc3868
|
sqc9892
|
sqc3863
|
