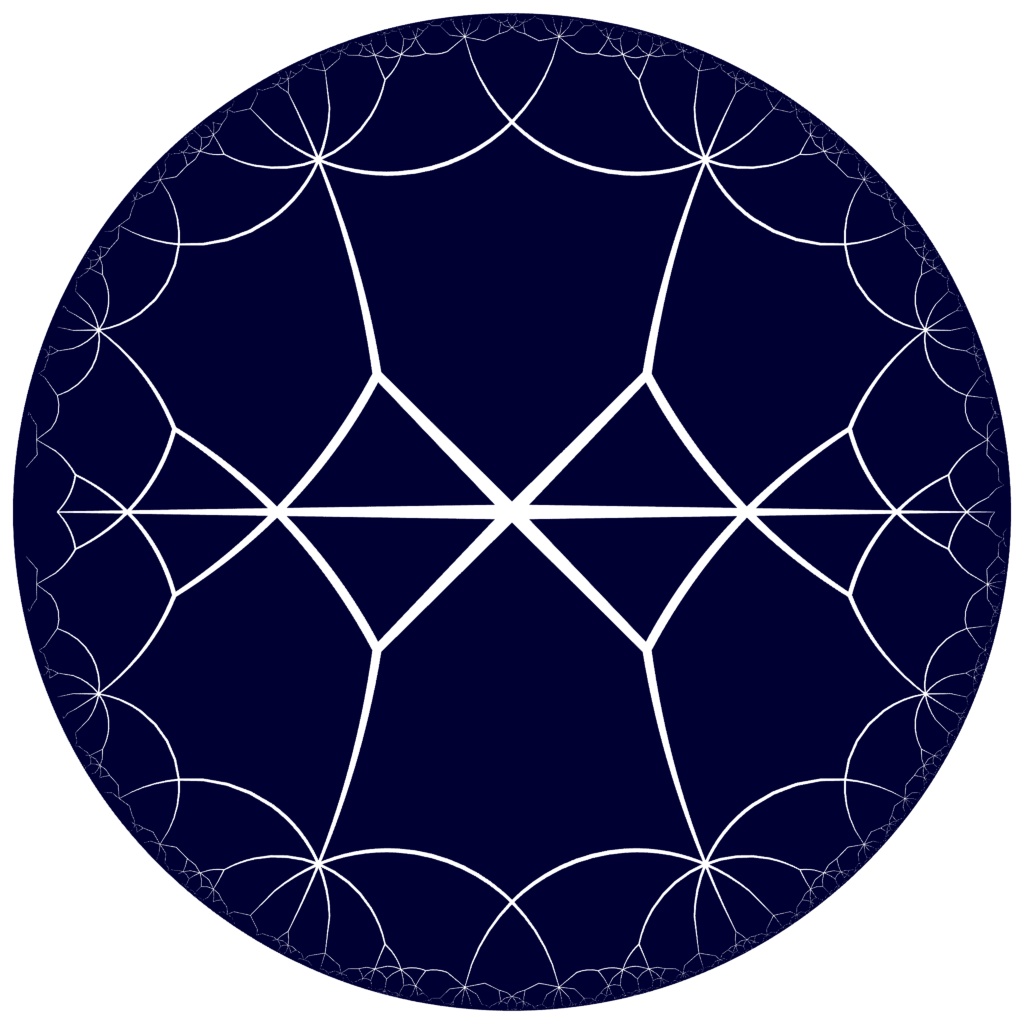

h-net: hqc1144


Topological data

Orbifold symbol*2244
Transitivity (vertex, edge, ring)(4,4,2)
Vertex degrees{6,3,8,4}
2D vertex symbol {3.6.3.3.6.3}{3.6.6}{6.6.6.6.6.6.6.6}{6.6.6.6}
Delaney-Dress Symbol <1144.2:9:1 3 5 7 9,2 3 4 6 8 9,1 4 5 6 7 8 9:3 6,6 3 8 4>
Dual net hqc943

Derived s-nets

s-nets with faithful topology

4 records listed.
Image s-net name Other names Space group Space group number Symmetry class Vertex degree(s) Vertices per primitive unit cell Transitivity (Vertex, Edge)
Full image sqc8515 I41/a 88 tetragonal {6,3,8,4} 16 (4,5)
Full image sqc8518 I-42d 122 tetragonal {6,3,8,4} 16 (4,5)
Full image sqc2544 P-42m 111 tetragonal {6,3,8,4} 8 (4,4)
Full image sqc8574 I41/amd 141 tetragonal {6,3,8,4} 16 (4,4)

s-nets with edge collapse


Derived U-tilings

2 records listed.
Image U-tiling name PGD Subgroup Transitivity (Vert,Edge,Face) Vertex Degree Vertex Symbol P net G net D net
Tiling details UQC4281 *2244b (4,4,2) {6,3,8,4} {3.6.3.3.6.3}{3.6.6}{6.6.6.6.6.6... Snet sqc1507 Snet sqc8515 Snet sqc8574
Tiling details UQC4282 *2244a (4,4,2) {6,3,8,4} {3.6.3.3.6.3}{3.6.6}{6.6.6.6.6.6... No s‑net Snet sqc8518 Snet sqc2544

Symmetry-lowered hyperbolic tilings
