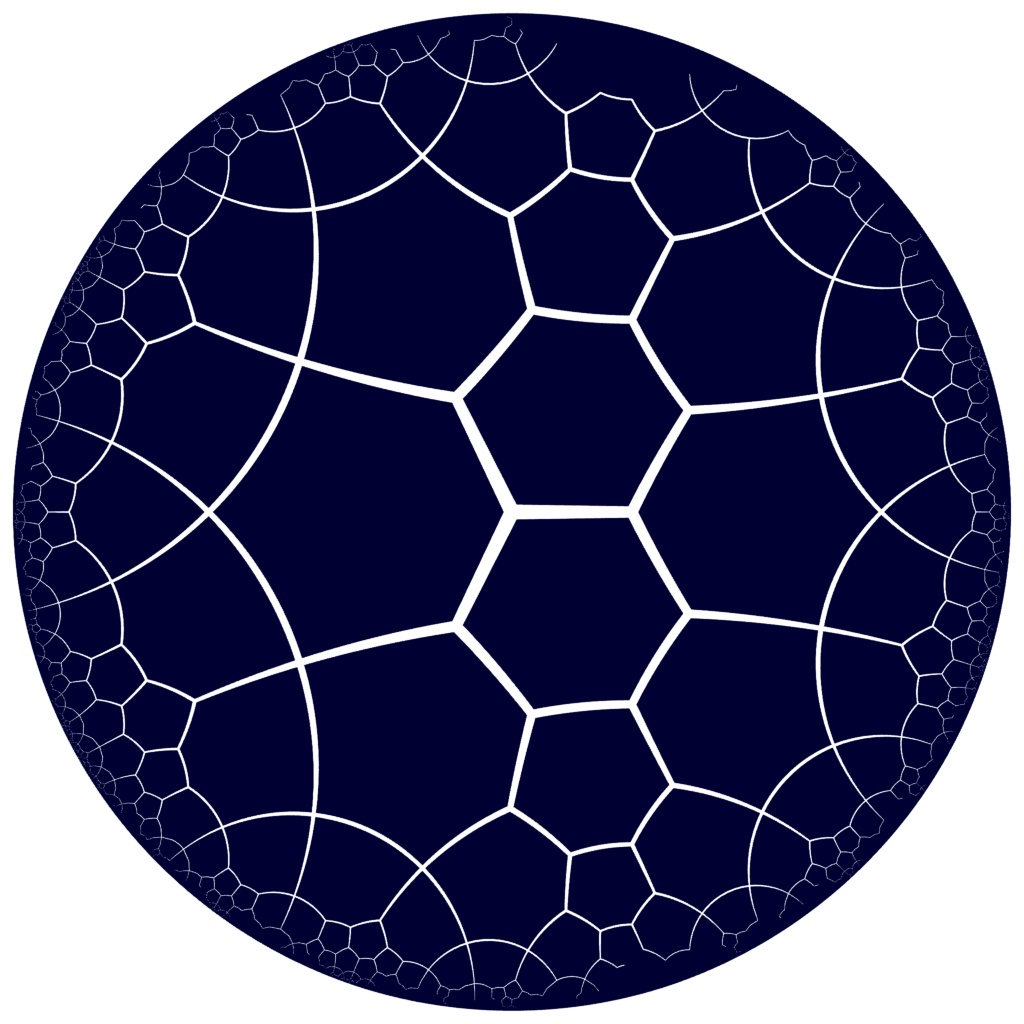

h-net: hqc1151
Topological data
| Orbifold symbol | *2224 |
| Transitivity (vertex, edge, ring) | (4,4,2) |
| Vertex degrees | {3,3,4,4} |
| 2D vertex symbol | {6.6.6}{6.6.6}{6.6.6.6}{6.6.6.6} |
| Vertex coordination sequence | [(3, 6, 11, 21, 42, 79, 148, 271, 504, 929), (3, 7, 13, 25, 46, 89, 163, 305, 557, 1040), (4, 10, 22, 40, 76, 136, 258, 470, 884, 1616), (4, 12, 24, 48, 84, 156, 280, 532, 972, 1824)] |
| Delaney-Dress Symbol | <1151.2:9:1 3 5 7 9,2 3 4 6 8 9,1 4 5 6 7 8 9:6 6,3 3 4 4> |
| Dual net | hqc935 |
Derived s-nets
s-nets with faithful topology
6 records listed.| Image | s-net name | Other names | Space group | Space group number | Symmetry class | Vertex degree(s) | Vertices per primitive unit cell | Transitivity (Vertex, Edge) |
|---|---|---|---|---|---|---|---|---|
|
sqc9202 | I4/mmm | 139 | tetragonal | {3,4,4,3} | 22 | (4,4) | |
|
sqc9229 | I4/mmm | 139 | tetragonal | {3,3,4,4} | 22 | (4,4) | |
|
sqc12847 | I41/acd | 142 | tetragonal | {3,3,4,4} | 44 | (4,5) | |
|
sqc12848 | I41/acd | 142 | tetragonal | {3,3,4,4} | 44 | (4,5) | |
|
sqc8599 | P42/nnm | 134 | tetragonal | {3,3,4,4} | 22 | (4,4) | |
|
sqc9199 | P42/nnm | 134 | tetragonal | {4,3,3,4} | 22 | (4,4) |
s-nets with edge collapse
No items to display.Derived U-tilings
2 records listed.| Image | U-tiling name | PGD Subgroup | Transitivity (Vert,Edge,Face) | Vertex Degree | Vertex Symbol | P net | G net | D net |
|---|---|---|---|---|---|---|---|---|
 |
UQC4293 | *2224 | (4,4,2) | {3,3,4,4} | {6.6.6}{6.6.6}{6.6.6.6}{6.6.6.6} |
sqc9202
|
sqc12848
|
sqc8599
|
 |
UQC4294 | *2224 | (4,4,2) | {3,3,4,4} | {6.6.6}{6.6.6}{6.6.6.6}{6.6.6.6} |
sqc9229
|
sqc12847
|
sqc9199
|
