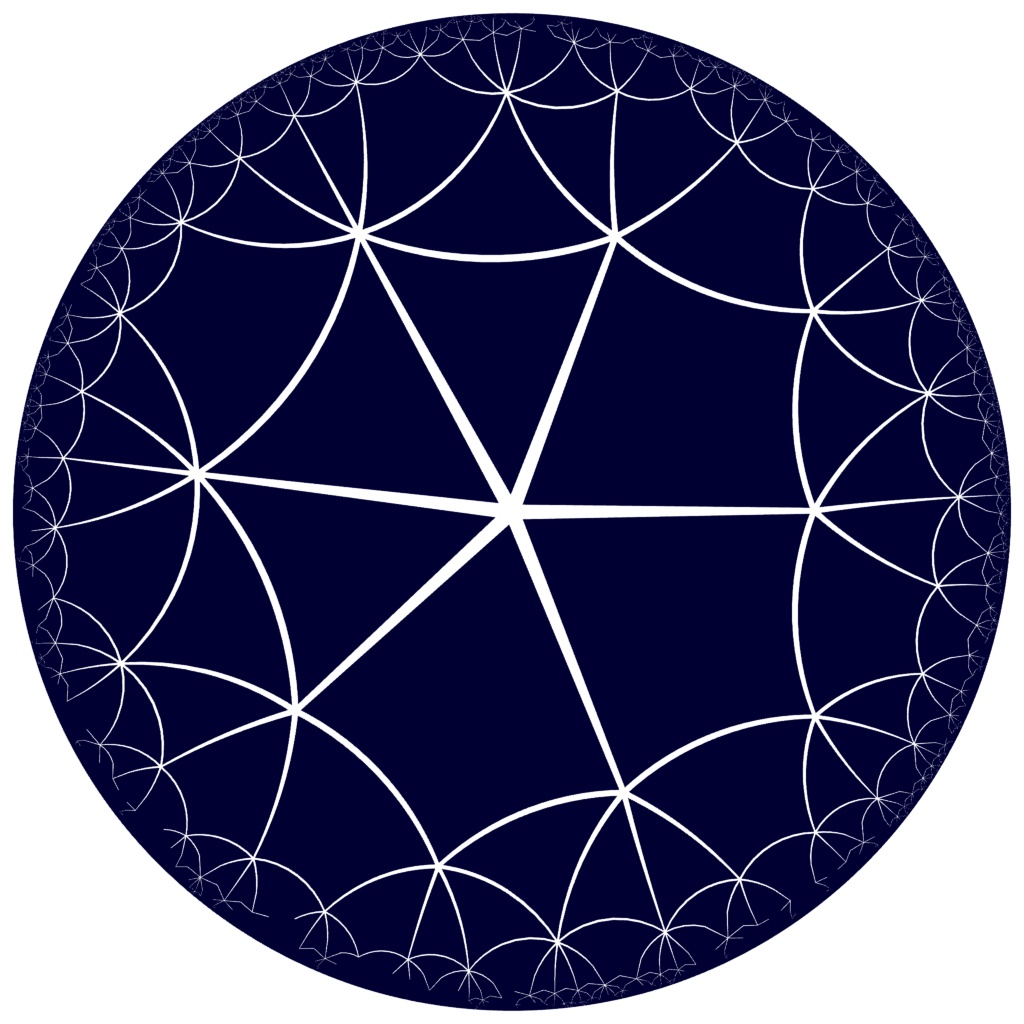

h-net: hqc1315
Topological data
| Orbifold symbol | *2244 |
| Transitivity (vertex, edge, ring) | (2,4,5) |
| Vertex degrees | {6,8} |
| 2D vertex symbol | {4.4.3.3.3.4}{3.3.4.3.3.3.4.3} |
| Delaney-Dress Symbol | <1315.2:10:1 2 3 4 6 8 9 10,1 3 5 6 7 9 10,2 4 7 8 10:4 4 3 3 4,6 8> |
| Dual net | hqc1554 |
Derived s-nets
s-nets with faithful topology
6 records listed.| Image | s-net name | Other names | Space group | Space group number | Symmetry class | Vertex degree(s) | Vertices per primitive unit cell | Transitivity (Vertex, Edge) |
|---|---|---|---|---|---|---|---|---|
|
sqc9478 | P42/mmc | 131 | tetragonal | {8,6} | 12 | (2,4) | |
|
sqc9689 | P4/nmm | 129 | tetragonal | {8,6} | 12 | (2,4) | |
|
sqc9525 | I-42d | 122 | tetragonal | {8,6} | 12 | (2,5) | |
|
sqc9688 | I41/a | 88 | tetragonal | {8,6} | 12 | (2,5) | |
|
sqc3383 | P-42m | 111 | tetragonal | {6,8} | 6 | (2,4) | |
|
sqc9686 | I41/amd | 141 | tetragonal | {8,6} | 12 | (2,4) |
s-nets with edge collapse
No items to display.Derived U-tilings
2 records listed.| Image | U-tiling name | PGD Subgroup | Transitivity (Vert,Edge,Face) | Vertex Degree | Vertex Symbol | P net | G net | D net |
|---|---|---|---|---|---|---|---|---|
 |
UQC2391 | *2244b | (2,4,5) | {6,8} | {4.4.3.3.3.4}{3.3.4.3.3.3.4.3} |
sqc9689
|
sqc9688
|
sqc9686
|
 |
UQC2392 | *2244a | (2,4,5) | {6,8} | {4.4.3.3.3.4}{3.3.4.3.3.3.4.3} |
sqc9478
|
sqc9525
|
sqc3383
|
