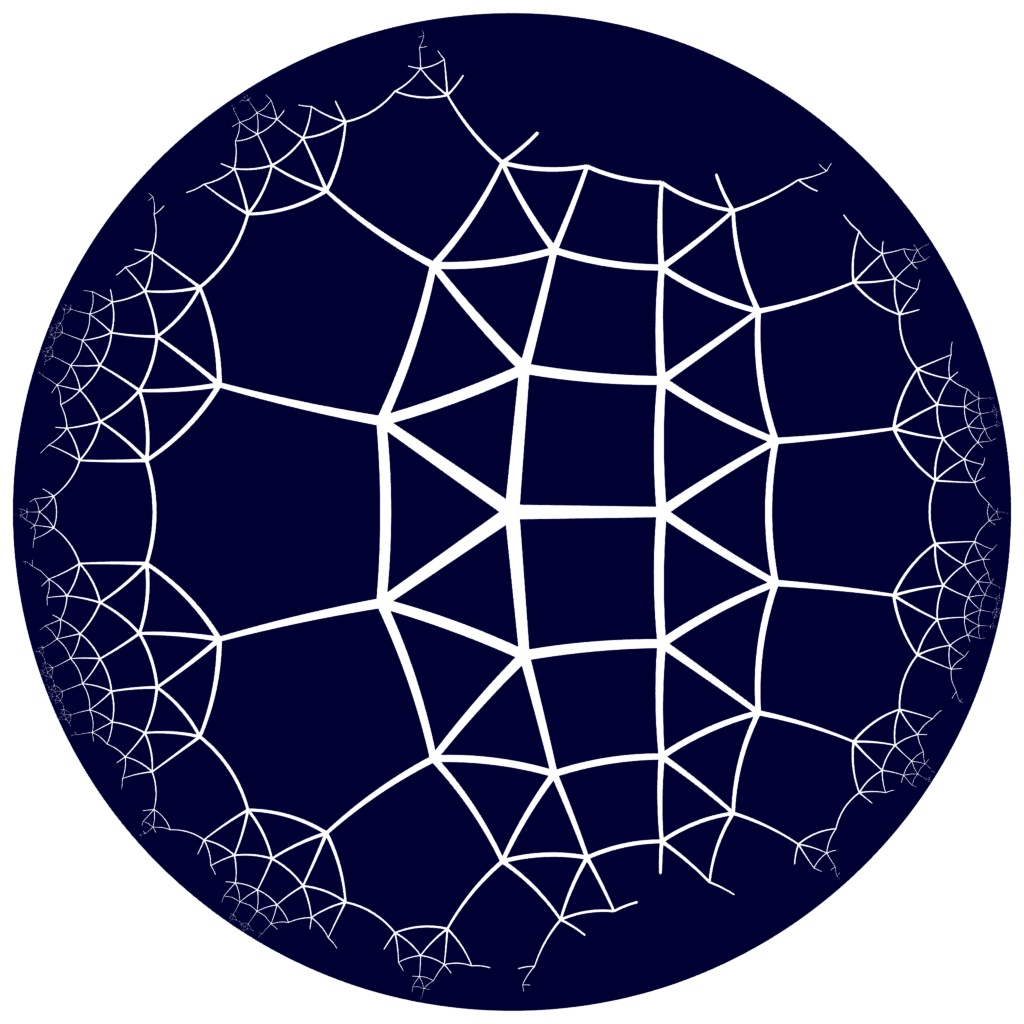

h-net: hqc1343
Topological data
| Orbifold symbol | *2223 |
| Transitivity (vertex, edge, ring) | (2,5,4) |
| Vertex degrees | {5,5} |
| 2D vertex symbol | {4.3.3.3.4}{3.3.6.6.3} |
| Vertex coordination sequence | [(5, 10, 20, 40, 74, 133, 248, 467, 862, 1584), (5, 12, 25, 44, 85, 156, 293, 534, 997, 1846)] |
| Delaney-Dress Symbol | <1343.2:10:1 2 3 5 7 8 9 10,2 4 5 6 8 10,1 3 6 7 9 10:4 3 3 6,5 5> |
| Dual net | hqc1487 |
Derived s-nets
s-nets with faithful topology
3 records listed.| Image | s-net name | Other names | Space group | Space group number | Symmetry class | Vertex degree(s) | Vertices per primitive unit cell | Transitivity (Vertex, Edge) |
|---|---|---|---|---|---|---|---|---|
|
sqc13942 | Pm-3m | 221 | cubic | {5,5} | 48 | (2,5) | |
|
sqc13941 | I4132 | 214 | cubic | {5,5} | 48 | (2,6) | |
|
sqc12227 | P4232 | 208 | cubic | {5,5} | 24 | (2,5) |
s-nets with edge collapse
No items to display.Derived U-tilings
1 record listed.| Image | U-tiling name | PGD Subgroup | Transitivity (Vert,Edge,Face) | Vertex Degree | Vertex Symbol | P net | G net | D net |
|---|---|---|---|---|---|---|---|---|
 |
UQC1793 | *2223 | (2,5,4) | {5,5} | {4.3.3.3.4}{3.3.6.6.3} |
sqc13942
|
sqc13941
|
sqc12227
|
