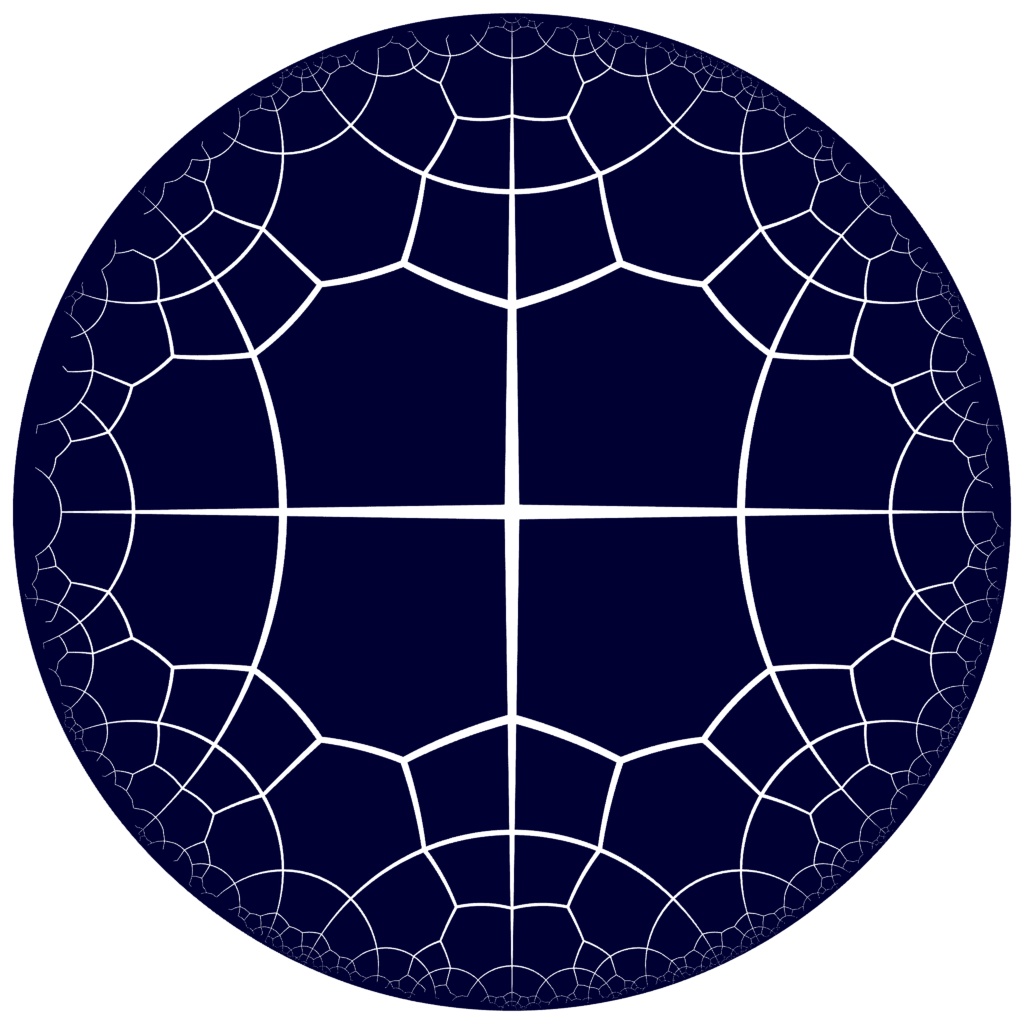

h-net: hqc1503
Topological data
| Orbifold symbol | *2224 |
| Transitivity (vertex, edge, ring) | (4,5,2) |
| Vertex degrees | {4,4,3,4} |
| 2D vertex symbol | {6.6.6.6}{6.4.4.6}{6.6.4}{4.4.4.4} |
| Vertex coordination sequence | [(4, 12, 24, 40, 68, 128, 248, 460, 820, 1464), (4, 8, 16, 32, 60, 108, 192, 348, 644, 1188), (3, 7, 13, 25, 48, 87, 155, 281, 517, 952), (4, 8, 16, 36, 72, 124, 208, 376, 716, 1344)] |
| Delaney-Dress Symbol | <1503.2:10:1 3 5 7 9 10,2 4 10 8 7 9,1 2 3 6 7 8 9 10:6 4,4 4 3 4> |
| Dual net | hqc1409 |
Derived s-nets
s-nets with faithful topology
6 records listed.| Image | s-net name | Other names | Space group | Space group number | Symmetry class | Vertex degree(s) | Vertices per primitive unit cell | Transitivity (Vertex, Edge) |
|---|---|---|---|---|---|---|---|---|
|
sqc9682 | I4/mmm | 139 | tetragonal | {4,4,3,4} | 22 | (4,5) | |
|
sqc9900 | I4/mmm | 139 | tetragonal | {4,4,3,4} | 22 | (4,5) | |
|
sqc13002 | I41/acd | 142 | tetragonal | {4,4,3,4} | 44 | (4,6) | |
|
sqc13009 | I41/acd | 142 | tetragonal | {4,4,3,4} | 44 | (4,6) | |
|
sqc9600 | P42/nnm | 134 | tetragonal | {3,4,4,4} | 22 | (4,5) | |
|
sqc9862 | P42/nnm | 134 | tetragonal | {4,4,3,4} | 22 | (4,5) |
s-nets with edge collapse
No items to display.Derived U-tilings
2 records listed.| Image | U-tiling name | PGD Subgroup | Transitivity (Vert,Edge,Face) | Vertex Degree | Vertex Symbol | P net | G net | D net |
|---|---|---|---|---|---|---|---|---|
 |
UQC4662 | *2224 | (4,5,2) | {4,4,3,4} | {6.6.6.6}{6.4.4.6}{6.6.4}{4.4.4.4} |
sqc9900
|
sqc13009
|
sqc9600
|
 |
UQC4663 | *2224 | (4,5,2) | {4,4,3,4} | {6.6.6.6}{6.4.4.6}{6.6.4}{4.4.4.4} |
sqc9682
|
sqc13002
|
sqc9862
|
