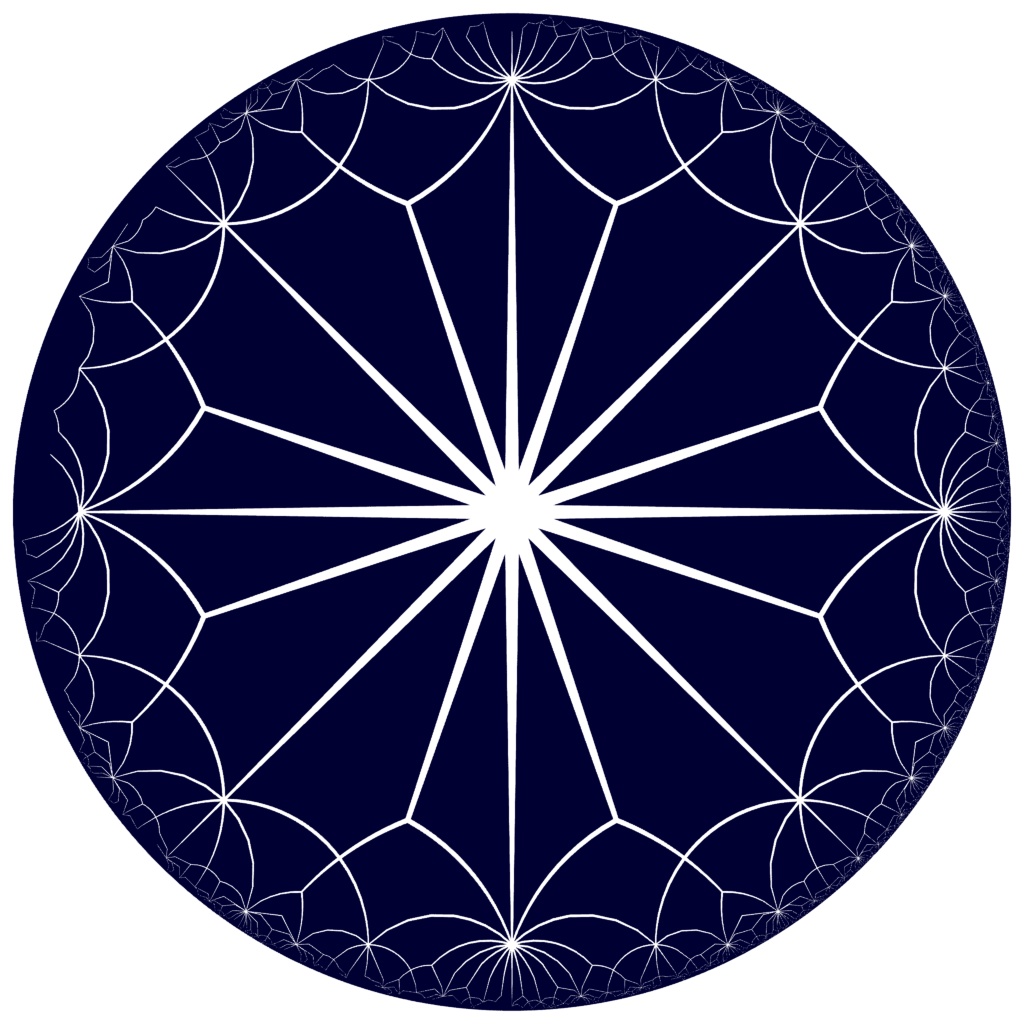

h-net: hqc1821
Topological data
| Orbifold symbol | *2244 |
| Transitivity (vertex, edge, ring) | (4,5,2) |
| Vertex degrees | {16,3,8,4} |
| 2D vertex symbol | {3.4.4.3.3.4.4.3.3.4.4.3.3.4.4.3}{3.4.4}{4.4.4.4.4.4.4.4}{4.4.4.4} |
| Delaney-Dress Symbol | <1821.2:11:1 3 5 7 9 11,2 3 6 11 8 10,1 4 5 6 7 8 9 10 11:3 4,16 3 8 4> |
| Dual net | hqc1657 |
Derived s-nets
s-nets with faithful topology
4 records listed.| Image | s-net name | Other names | Space group | Space group number | Symmetry class | Vertex degree(s) | Vertices per primitive unit cell | Transitivity (Vertex, Edge) |
|---|---|---|---|---|---|---|---|---|
|
sqc10175 | I41/a | 88 | tetragonal | {16,3,8,4} | 16 | (4,6) | |
|
sqc10176 | I-42d | 122 | tetragonal | {16,3,8,4} | 16 | (4,6) | |
|
sqc4022 | P-42m | 111 | tetragonal | {3,4,8,16} | 8 | (4,5) | |
|
sqc10199 | I41/amd | 141 | tetragonal | {16,3,8,4} | 16 | (4,5) |
s-nets with edge collapse
Derived U-tilings
2 records listed.| Image | U-tiling name | PGD Subgroup | Transitivity (Vert,Edge,Face) | Vertex Degree | Vertex Symbol | P net | G net | D net |
|---|---|---|---|---|---|---|---|---|
 |
UQC4968 | *2244b | (4,5,2) | {16,3,8,4} | {3.4.4.3.3.4.4.3.3.4.4.3.3.4.4.3... |
sqc3125
|
sqc10175
|
sqc10199
|
 |
UQC4969 | *2244a | (4,5,2) | {16,3,8,4} | {3.4.4.3.3.4.4.3.3.4.4.3.3.4.4.3... |
sqc9947
|
sqc10176
|
sqc4022
|
