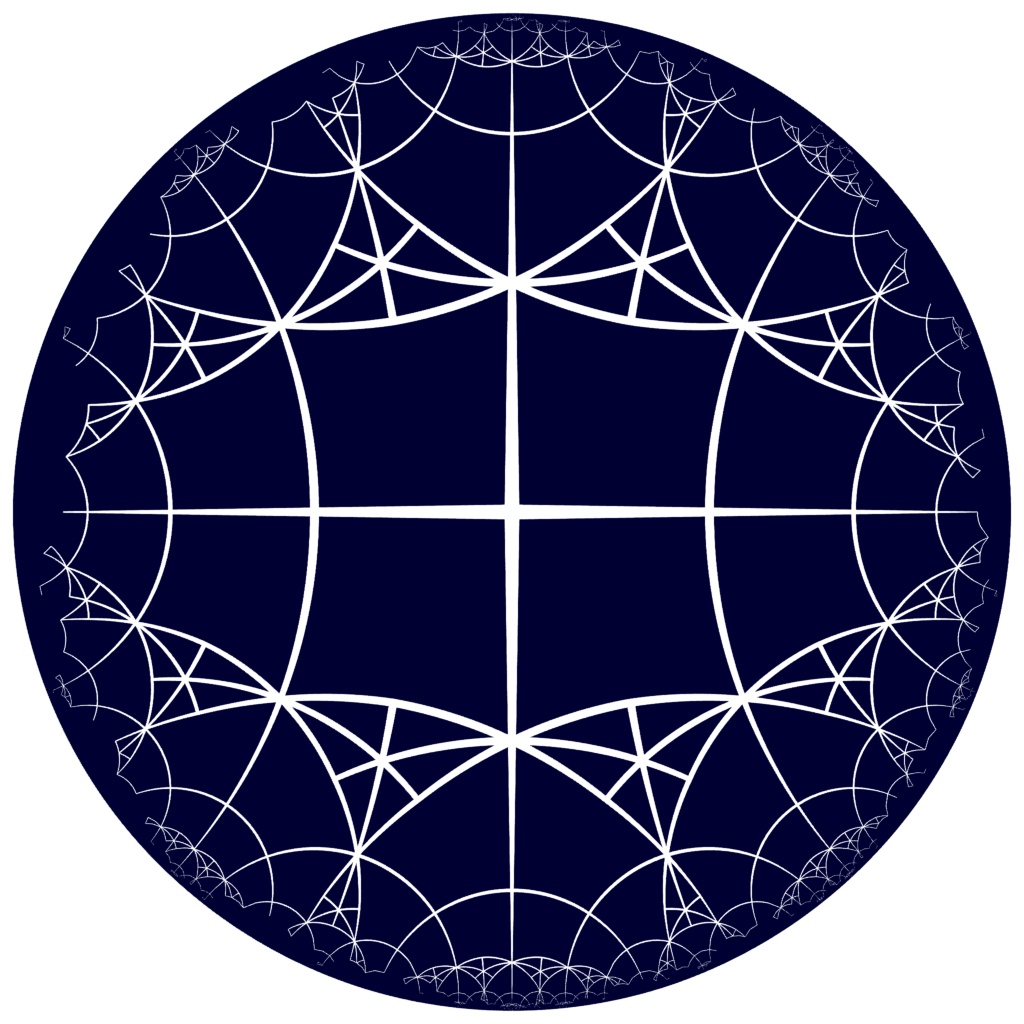

h-net: hqc1846
Topological data
| Orbifold symbol | *2223 |
| Transitivity (vertex, edge, ring) | (4,5,2) |
| Vertex degrees | {4,8,3,6} |
| 2D vertex symbol | {5.5.5.5}{5.3.3.5.5.3.3.5}{5.3.3}{3.3.3.3.3.3} |
| Vertex coordination sequence | [(4, 20, 36, 76, 148, 300, 584, 1188, 2332, 4692), (8, 12, 38, 58, 146, 252, 560, 1036, 2174, 4182), (3, 13, 19, 57, 89, 209, 383, 811, 1551, 3187), (6, 15, 21, 72, 99, 261, 444, 987, 1833, 3840)] |
| Delaney-Dress Symbol | <1846.2:11:1 3 5 7 9 11,2 4 5 8 11 10,1 2 3 6 7 8 9 10 11:5 3,4 8 3 6> |
| Dual net | hqc1717 |
Derived s-nets
s-nets with faithful topology
3 records listed.| Image | s-net name | Other names | Space group | Space group number | Symmetry class | Vertex degree(s) | Vertices per primitive unit cell | Transitivity (Vertex, Edge) |
|---|---|---|---|---|---|---|---|---|
|
sqc14077 | Pm-3m | 221 | cubic | {4,8,3,6} | 56 | (4,5) | |
|
sqc14078 | I4132 | 214 | cubic | {4,8,3,6} | 56 | (4,6) | |
|
sqc12506 | P4232 | 208 | cubic | {3,6,4,8} | 28 | (4,5) |
s-nets with edge collapse
No items to display.Derived U-tilings
1 record listed.| Image | U-tiling name | PGD Subgroup | Transitivity (Vert,Edge,Face) | Vertex Degree | Vertex Symbol | P net | G net | D net |
|---|---|---|---|---|---|---|---|---|
 |
UQC5020 | *2223 | (4,5,2) | {4,8,3,6} | {5.5.5.5}{5.3.3.5.5.3.3.5}{5.3.3... |
