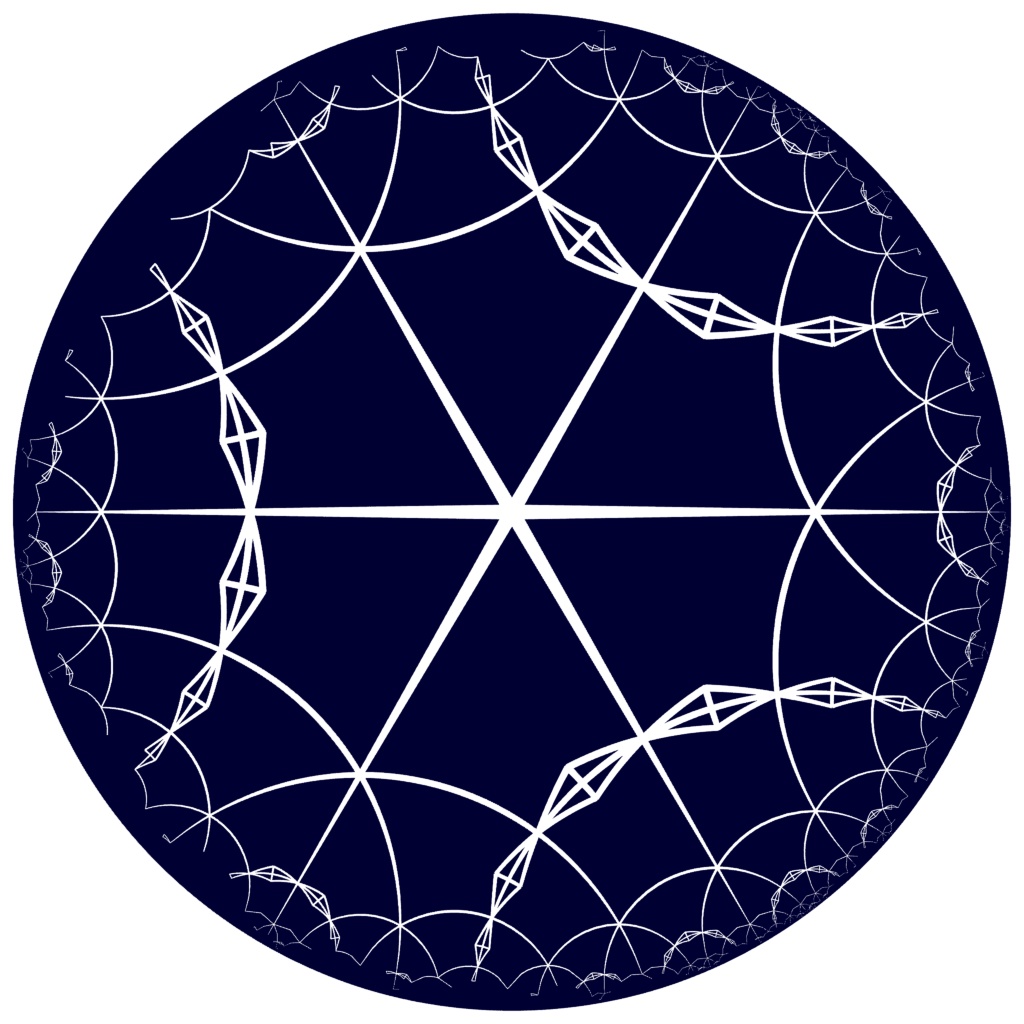

h-net: hqc1854
Topological data
| Orbifold symbol | *2223 |
| Transitivity (vertex, edge, ring) | (4,5,2) |
| Vertex degrees | {6,8,3,4} |
| 2D vertex symbol | {5.5.5.5.5.5}{5.3.3.5.5.3.3.5}{5.3.3}{3.3.3.3} |
| Vertex coordination sequence | [(6, 36, 84, 234, 600, 1584, 4134, 10836, 28356, 74250), (8, 12, 60, 144, 406, 1050, 2762, 7218, 18910, 49494), (3, 11, 18, 92, 206, 594, 1512, 4006, 10436, 27378), (4, 10, 18, 92, 206, 594, 1512, 4006, 10436, 27378)] |
| Delaney-Dress Symbol | <1854.2:11:1 3 5 7 9 11,2 4 5 8 11 10,1 2 3 6 7 8 9 10 11:5 3,6 8 3 4> |
| Dual net | hqc1702 |
Derived s-nets
s-nets with faithful topology
No items to display.s-nets with edge collapse
No items to display.Derived U-tilings
1 record listed.| Image | U-tiling name | PGD Subgroup | Transitivity (Vert,Edge,Face) | Vertex Degree | Vertex Symbol | P net | G net | D net |
|---|---|---|---|---|---|---|---|---|
 |
UQC5040 | *2223 | (4,5,2) | {6,8,3,4} | {5.5.5.5.5.5}{5.3.3.5.5.3.3.5}{5... | No s‑net | No s‑net | No s‑net |
