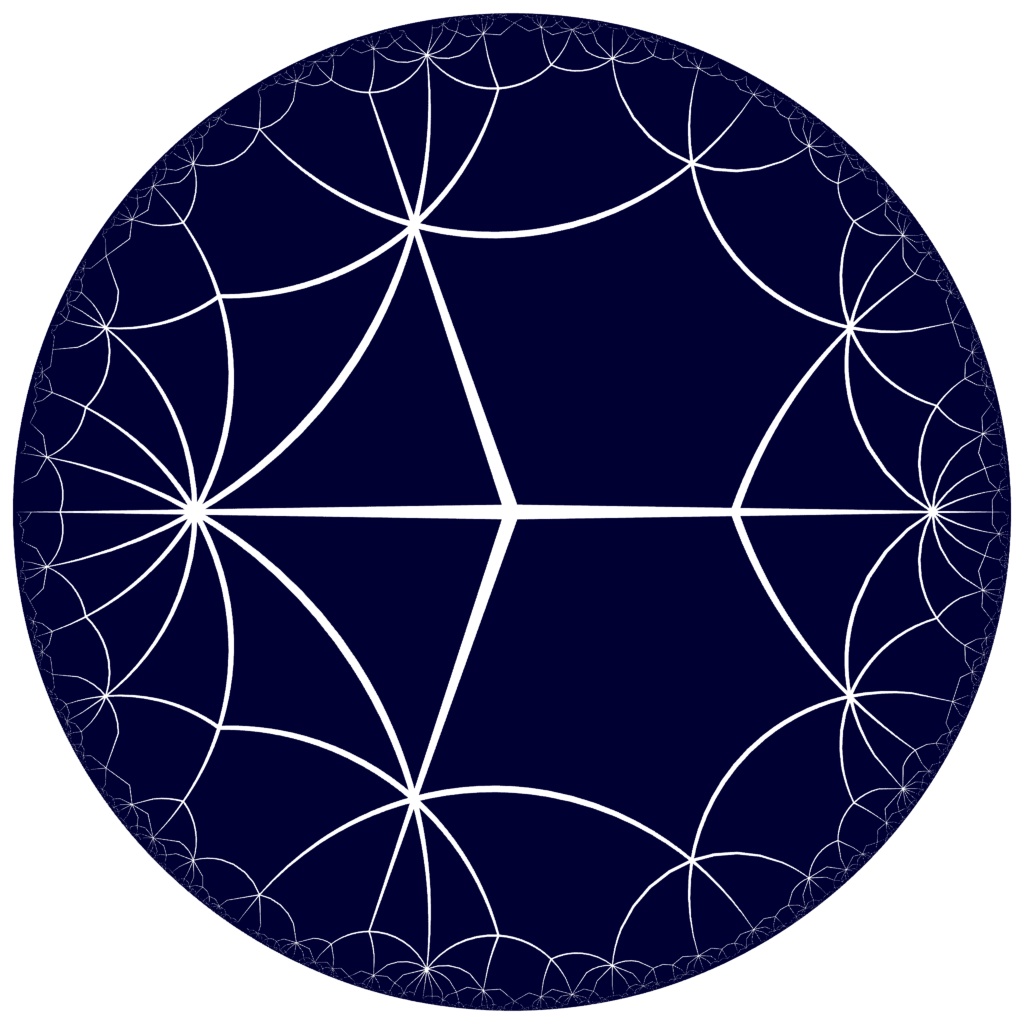

h-net: hqc1899
Topological data
| Orbifold symbol | *2626 |
| Transitivity (vertex, edge, ring) | (4,5,2) |
| Vertex degrees | {4,8,12,6} |
| 2D vertex symbol | {5.3.3.5}{5.5.3.3.5.5.3.3}{3.3.3.3.3.3.3.3.3.3.3.3}{5.5.5.5.5.5} |
| Vertex coordination sequence | [(4, 22, 82, 324, 1286, 4988, 18966, 74748), (8, 32, 128, 476, 1948, 7156, 29184, 108156), (12, 36, 132, 612, 2208, 8772, 32784, 133476), (6, 42, 150, 552, 2046, 8634, 31578, 127932)] |
| Delaney-Dress Symbol | <1899.2:11:1 3 5 7 9 11,2 10 6 9 8 11,1 4 5 6 7 8 9 10 11:5 3,4 8 12 6> |
| Dual net | hqc1761 |
Derived s-nets
s-nets with faithful topology
4 records listed.| Image | s-net name | Other names | Space group | Space group number | Symmetry class | Vertex degree(s) | Vertices per primitive unit cell | Transitivity (Vertex, Edge) |
|---|---|---|---|---|---|---|---|---|
|
sqc8218 | R-3m | 166 | rhombohedral | {4,8,12,6} | 11 | (4,5) | |
|
sqc8198 | R-3 | 148 | rhombohedral | {4,8,12,6} | 11 | (4,6) | |
|
sqc8205 | R-3 | 148 | rhombohedral | {4,8,12,6} | 11 | (4,6) | |
|
sqc8197 | R-3m | 166 | rhombohedral | {4,8,12,6} | 11 | (4,5) |
s-nets with edge collapse
No items to display.Derived U-tilings
2 records listed.| Image | U-tiling name | PGD Subgroup | Transitivity (Vert,Edge,Face) | Vertex Degree | Vertex Symbol | P net | G net | D net |
|---|---|---|---|---|---|---|---|---|
 |
UQC5104 | *2626 | (4,5,2) | {4,8,12,6} | {5.3.3.5}{5.5.3.3.5.5.3.3}{3.3.3... |
sqc8218
|
sqc8205
|
sqc8197
|
 |
UQC5105 | *2626 | (4,5,2) | {4,8,12,6} | {5.3.3.5}{5.5.3.3.5.5.3.3}{3.3.3... |
sqc8197
|
sqc8198
|
sqc8218
|
