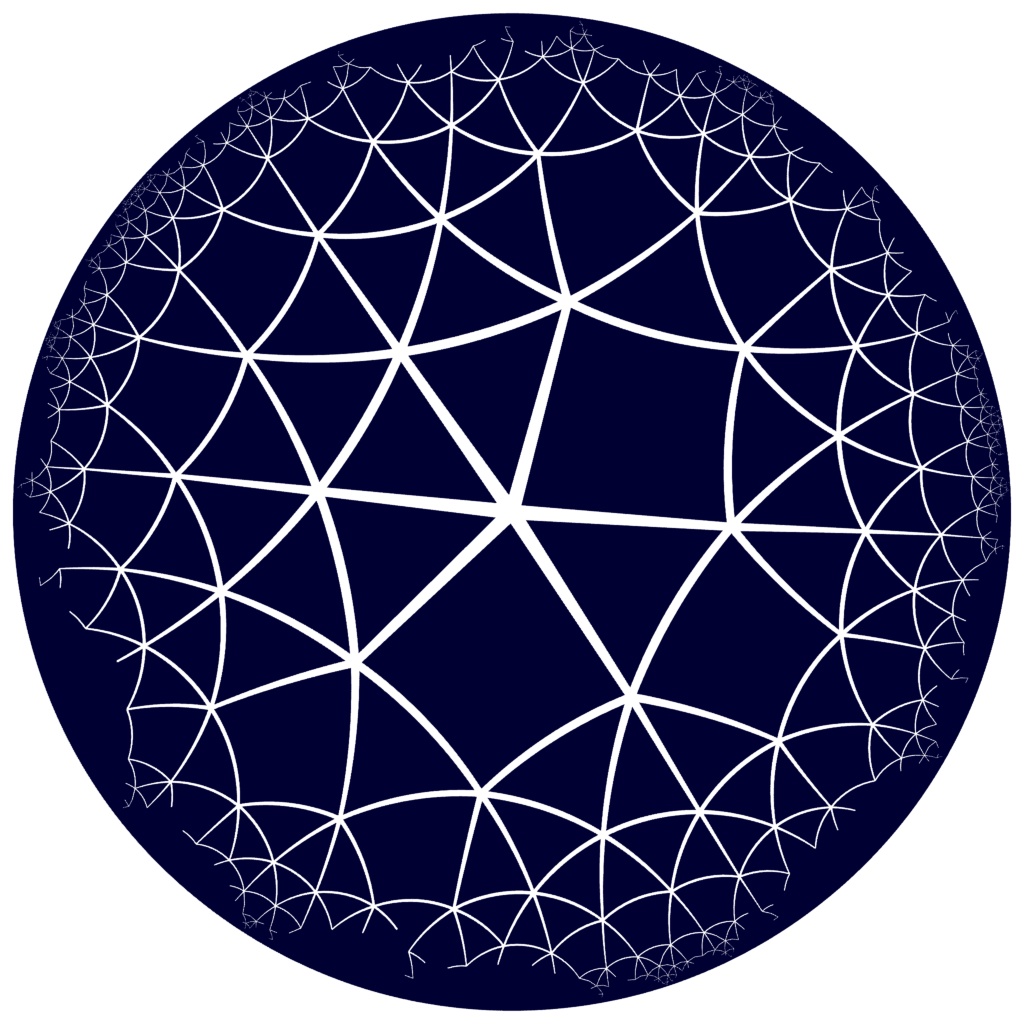

h-net: hqc929
Topological data
| Orbifold symbol | *2223 |
| Transitivity (vertex, edge, ring) | (2,4,4) |
| Vertex degrees | {6,6} |
| 2D vertex symbol | {3.4.3.3.3.4}{3.3.3.3.3.3} |
| Vertex coordination sequence | [(6, 14, 36, 74, 158, 364, 766, 1654, 3692, 7910), (6, 17, 37, 82, 180, 386, 847, 1847, 3990, 8716)] |
| Delaney-Dress Symbol | <929.2:9:1 2 3 4 6 8 9,1 3 5 6 7 9,2 4 7 8 9:3 4 3 3,6 6> |
| Dual net | hqc1150 |
Derived s-nets
s-nets with faithful topology
3 records listed.| Image | s-net name | Other names | Space group | Space group number | Symmetry class | Vertex degree(s) | Vertices per primitive unit cell | Transitivity (Vertex, Edge) |
|---|---|---|---|---|---|---|---|---|
|
sqc13651 | Pm-3m | 221 | cubic | {6,6} | 36 | (2,4) | |
|
sqc13645 | I4132 | 214 | cubic | {6,6} | 36 | (2,5) | |
|
sqc11609 | P4232 | 208 | cubic | {6,6} | 18 | (2,4) |
s-nets with edge collapse
No items to display.Derived U-tilings
1 record listed.| Image | U-tiling name | PGD Subgroup | Transitivity (Vert,Edge,Face) | Vertex Degree | Vertex Symbol | P net | G net | D net |
|---|---|---|---|---|---|---|---|---|
 |
UQC1452 | *2223 | (2,4,4) | {6,6} | {3.4.3.3.3.4}{3.3.3.3.3.3} |
sqc13651
|
sqc13645
|
sqc11609
|
