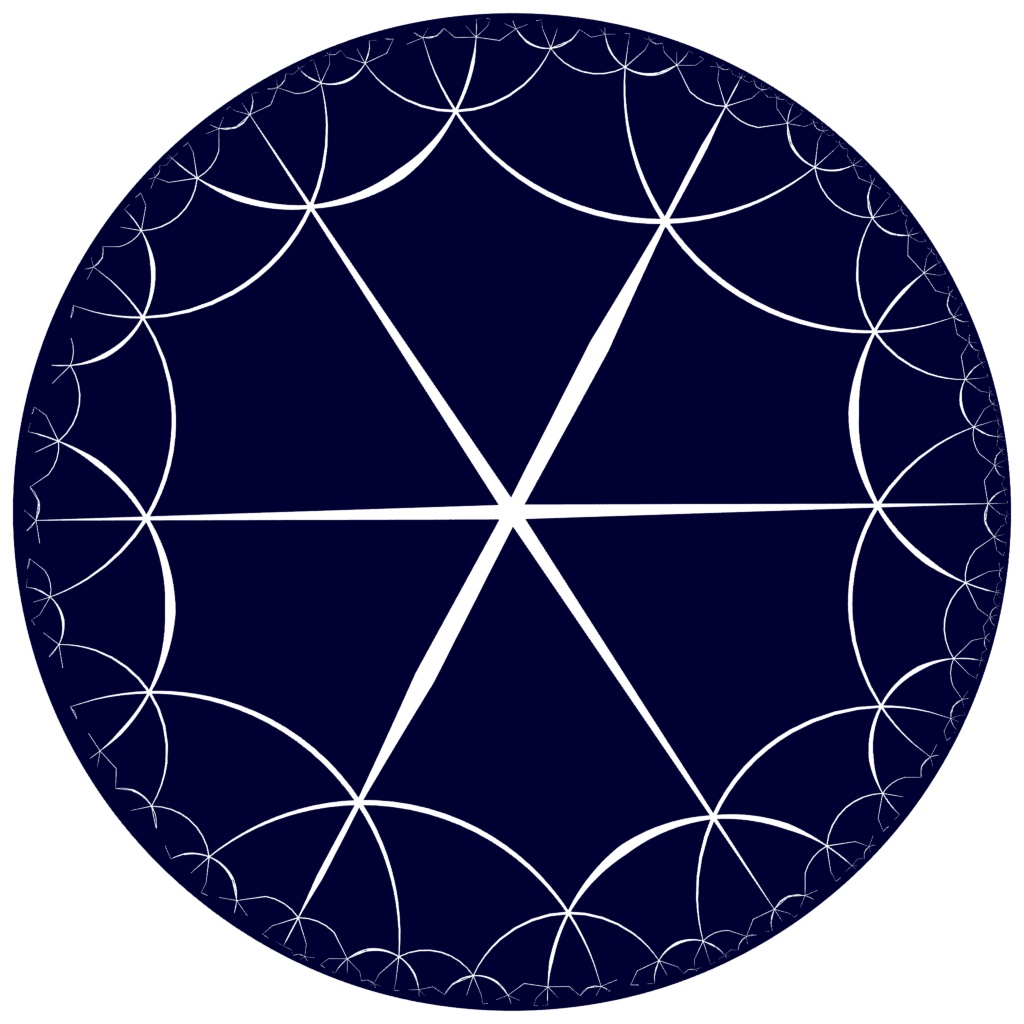

h-net: hqc936
Topological data
| Orbifold symbol | *2224 |
| Transitivity (vertex, edge, ring) | (2,4,4) |
| Vertex degrees | {12,3} |
| 2D vertex symbol | {4.4.3.3.3.4.4.4.3.3.3.4}{3.3.3} |
| Vertex coordination sequence | [(3, 14, 70, 262, 978, 3650, 13622, 50838), (10, 44, 166, 620, 2314, 8636, 32230, 120284)] |
| Delaney-Dress Symbol | <936.2:9:1 2 3 4 6 8 9,1 3 5 6 7 9,2 4 7 8 9:4 4 3 3,12 3> |
| Dual net | hqc1147 |
Derived s-nets
s-nets with faithful topology
No items to display.s-nets with edge collapse
Derived U-tilings
2 records listed.| Image | U-tiling name | PGD Subgroup | Transitivity (Vert,Edge,Face) | Vertex Degree | Vertex Symbol | P net | G net | D net |
|---|---|---|---|---|---|---|---|---|
 |
UQC1460 | *2224 | (2,4,4) | {12,3} | {4.4.3.3.3.4.4.4.3.3.3.4}{3.3.3} | No s‑net | No s‑net | No s‑net |
 |
UQC1461 | *2224 | (2,4,4) | {12,3} | {4.4.3.3.3.4.4.4.3.3.3.4}{3.3.3} | No s‑net | No s‑net | No s‑net |
