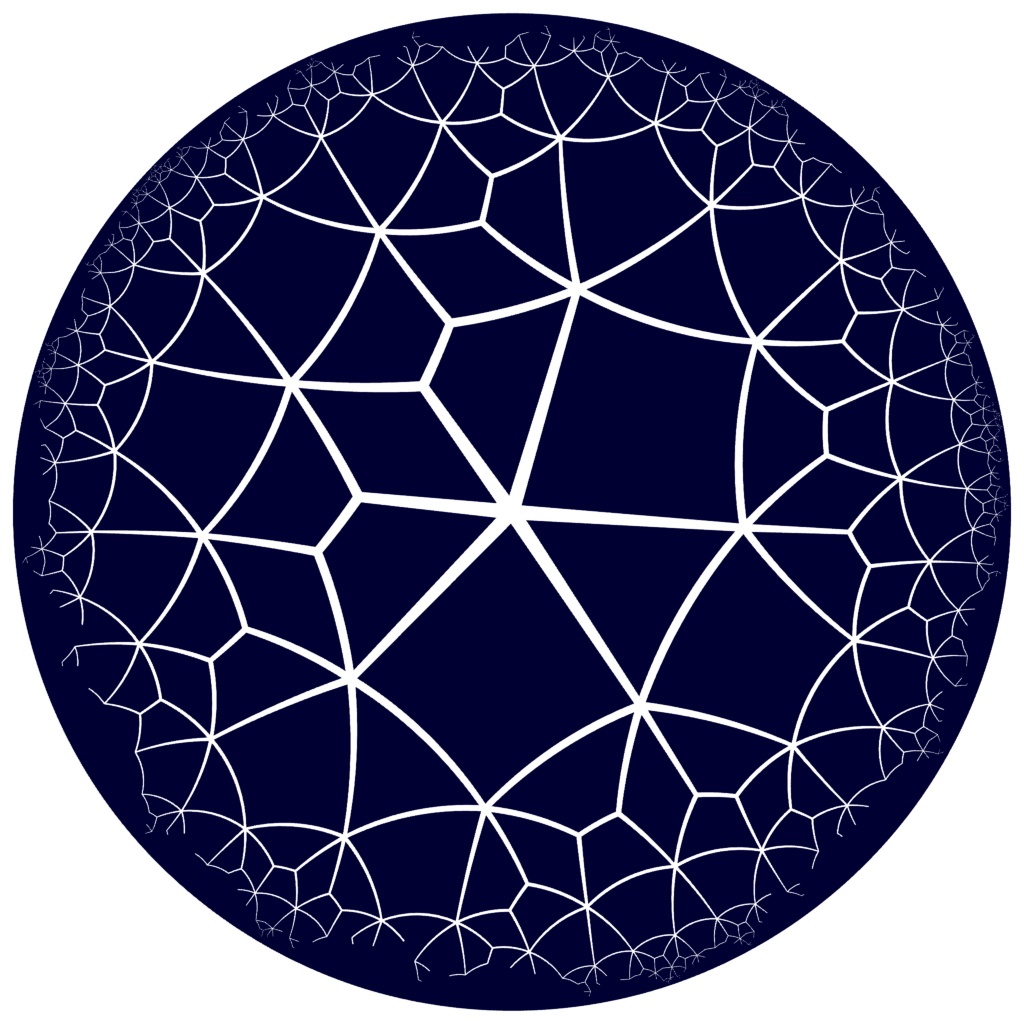

h-net: hqc955
Topological data
| Orbifold symbol | *2223 |
| Transitivity (vertex, edge, ring) | (2,4,4) |
| Vertex degrees | {6,3} |
| 2D vertex symbol | {3.4.4.4.4.4}{4.4.4} |
| Vertex coordination sequence | [(3, 9, 27, 58, 112, 230, 468, 932, 1882, 3808), (6, 17, 35, 70, 144, 290, 581, 1175, 2370, 4768)] |
| Delaney-Dress Symbol | <955.2:9:1 2 3 4 6 8 9,1 3 5 9 7 8,2 4 7 8 9:3 4 4 4,6 3> |
| Dual net | hqc1155 |
Derived s-nets
s-nets with faithful topology
3 records listed.| Image | s-net name | Other names | Space group | Space group number | Symmetry class | Vertex degree(s) | Vertices per primitive unit cell | Transitivity (Vertex, Edge) |
|---|---|---|---|---|---|---|---|---|
|
sqc13655 | Pm-3m | 221 | cubic | {3,6} | 48 | (2,4) | |
|
sqc13652 | I4132 | 214 | cubic | {3,6} | 48 | (2,5) | |
|
sqc11663 | P4232 | 208 | cubic | {3,6} | 24 | (2,4) |
s-nets with edge collapse
No items to display.Derived U-tilings
1 record listed.| Image | U-tiling name | PGD Subgroup | Transitivity (Vert,Edge,Face) | Vertex Degree | Vertex Symbol | P net | G net | D net |
|---|---|---|---|---|---|---|---|---|
 |
UQC1493 | *2223 | (2,4,4) | {6,3} | {3.4.4.4.4.4}{4.4.4} |
sqc13655
|
sqc13652
|
sqc11663
|
