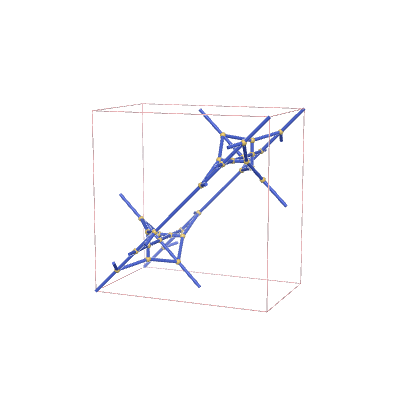

s-net: sqc10636
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 24 |
| Edges per primitive translational unit | 44 |
| Transitivity (vertex,edge) | (4,5) |
| Vertex degrees | {4,3,4,4} |
| Vertex coordination sequence | [(4, 8, 14, 24, 40, 68, 98, 128, 182, 234), (3, 7, 12, 20, 36, 59, 89, 128, 167, 217), (4, 8, 12, 20, 36, 60, 86, 128, 168, 210), (4, 6, 10, 18, 30, 54, 76, 104, 160, 200)] |
| Wells’ vertex symbol | [4^2.6.12^2.14, 4^2.6, 4^4.6^2, 4^4.6^2] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 2, 6, 0, 0, 0, 2, 7, 0, 0, 0, 2, 8, 0, 0, 0, 3, 6, 0, 0, 0, 3, 9, 0, 0, 0, 4, 8, 0, 0, 0, 4, 10, 0, 0, 0, 5, 7, 1, 0, 0, 5, 9, 0, 0, 0, 5, 10, 0, 0, 0, 6, 11, 0, 0, 0, 6, 12, 0, 0, 0, 7, 12, 0, 0, 0, 7, 13, 0, 0, 0, 8, 13, 0, 0, 0, 8, 14, 0, 0, 0, 9, 13, 1, 0, 0, 9, 15, 0, 0, 0, 10, 12, 1, 0, 0, 10, 16, 0, 0, 0, 11, 17, 0, 0, 0, 11, 18, 0, 0, 0, 11, 19, 0, 0, 0, 14, 18, 0, 1, 0, 14, 20, 0, 0, 0, 14, 21, 0, 0, 0, 15, 17, 1, 1, 1, 15, 21, 0, 0, 1, 15, 22, 0, 0, 0, 16, 19, 0, 0, -1, 16, 20, 1, -1, -1, 16, 22, 0, -1, -2, 17, 23, 0, 0, 0, 18, 23, 0, 0, 0, 18, 24, 0, 0, 0, 19, 24, 0, 0, 0, 20, 23, 0, 1, 0, 21, 24, 0, 1, 0, 22, 23, 1, 1, 1, 22, 24, 0, 1, 1) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: P42/nnm
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 5.69227 | 5.69227 | 3.41107 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.13462 | 0.13462 | 0 |
| 0.17308 | 0.25 | 0.25 |
| 0.25 | 0.25 | 0 |
| 0.25 | 0.25 | 0.25 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: P42/nnm
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 4.19186 | 4.19186 | 3.3058 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.08638 | 0.08638 | 0 |
| 0.01866 | 0.25 | 0.25 |
| 0.25 | 0.25 | 0 |
| 0.25 | 0.25 | 0.25 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc1833 | *2224 | (4,5,2) | {4,3,4,4} | {12.4.4.12}{12.4.4}{4.4.4.4}{4.4... |
