Systre crystallographic geometry file (.cgd) |
topcryst |
Vertices per primitive translational unit | 24 |
Edges per primitive translational unit | 56 |
Transitivity (vertex,edge) | (2,7) |
Vertex degrees | {6,4} |
Vertex coordination sequence | [(6, 17, 32, 50, 76, 113, 154, 194, 242, 305), (4, 9, 20, 41, 68, 99, 139, 188, 239, 291)] |
Wells’ vertex symbol | [4^9.6^6, 4^5.6] |
Systre key | (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 3, 1, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 1, 6, 0, 0, 0, 2, 7, 0, 0, 0, 2, 8, 0, 0, 0, 2, 9, 0, 0, 0, 3, 8, -1, 0, 0, 3, 10, 0, 0, 0, 3, 11, 0, 0, 0, 3, 12, 0, 0, 0, 4, 9, 0, 0, 0, 4, 10, 0, 0, 0, 4, 10, 1, 0, 0, 4, 13, 0, 0, 0, 4, 14, 0, 0, 0, 5, 11, 1, 0, 0, 5, 13, 0, 1, 0, 5, 15, 0, 0, 0, 6, 7, 0, 0, 1, 6, 12, 0, 0, 0, 6, 12, 1, 0, 0, 6, 14, 0, 0, 0, 6, 15, 0, 0, 0, 7, 16, 0, 0, 0, 7, 17, 0, 0, 0, 8, 16, 0, 0, 0, 8, 18, 0, 0, 0, 9, 17, 0, 0, 0, 9, 18, 0, 0, 0, 10, 18, -1, 0, 0, 10, 19, 0, 0, 0, 10, 20, 0, 0, 0, 11, 19, 0, 1, 0, 11, 21, 0, 0, 0, 12, 16, -1, 0, 1, 12, 20, 0, 0, 0, 12, 21, 0, 0, 0, 13, 19, 1, 0, 0, 13, 22, 0, 0, 0, 14, 17, 0, 0, 1, 14, 20, 0, 0, 0, 14, 20, 1, 0, 0, 14, 22, 0, 0, 0, 15, 21, 1, 0, 0, 15, 22, 0, 1, 0, 16, 23, 0, 0, 0, 17, 23, 0, 0, 0, 18, 23, 0, 0, 0, 19, 24, 0, 0, 0, 20, 23, -1, 0, 1, 20, 24, 0, 0, 0, 21, 24, 0, 1, 0, 22, 24, 1, 0, 0) |
Spacegroup: P4/mmm
Parameters:
a | b | c | alpha | beta | gamma |
---|---|---|---|---|---|
4.62048 | 4.62048 | 3.01758 | 90.0 | 90.0 | 90.0 |
Vertex positions:
X-pos | Y-pos | Z-pos |
---|---|---|
0.1 | 0.1 | 0.1875 |
0.03333 | 0.36667 | 0.0625 |
Edge end points:
Spacegroup: P4/mmm
Parameters:
a | b | c | alpha | beta | gamma |
---|---|---|---|---|---|
4.00003 | 4.00003 | 2.00014 | 90.0 | 90.0 | 90.0 |
Vertex positions:
X-pos | Y-pos | Z-pos |
---|---|---|
0.125 | 0.125 | 0.25 |
0.12499 | 0.375 | 0.24997 |
Edge end points:

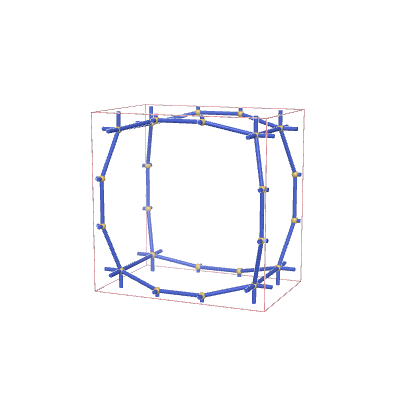

Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
---|---|---|---|---|---|
![]() |
hqc2297 | *22222 | (2,7,5) | {4,6} | {4.4.4.4}{4.4.4.4.4.4} |
