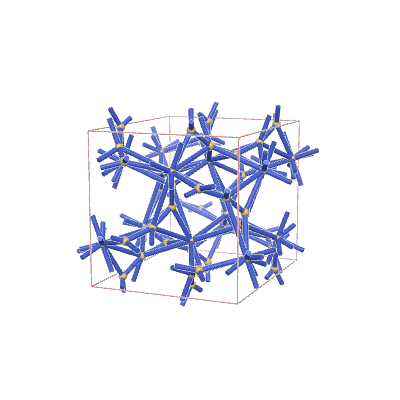

s-net: sqc12368
















					Systre crystallographic geometry file (.cgd)











Links to this net in other databases





			topcryst










Topological data





Vertices per primitive translational unit 20


Edges per primitive translational unit 64


Transitivity (vertex,edge)(3,4)


Vertex degrees {6,12,4}


Vertex coordination sequence  [(6, 35, 46, 151, 132, 343, 262, 607, 436, 951), (12, 22, 88, 86, 240, 194, 468, 346, 772, 542), (4, 24, 50, 122, 160, 274, 326, 496, 548, 778)]


Wells’ vertex symbol [3^4.4^5.5^4.6^2, 3^8.4^10.5^12.6^26.7^8.8^2, 3^4.4^2]


Systre key (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 1, 6, 0, 0, 0, 1, 7, 0, 0, 0, 1, 8, 0, 0, 0, 1, 9, 0, 0, 0, 1, 10, 0, 0, 0, 1, 11, 0, 0, 0, 1, 12, 0, 0, 0, 1, 13, 0, 0, 0, 2, 3, 0, 0, 0, 2, 14, 0, 0, 0, 2, 15, 0, 0, 0, 2, 16, 0, 0, 0, 2, 17, 0, 0, 0, 3, 6, 0, 0, 0, 3, 14, 0, 0, 0, 4, 7, 0, 0, 0, 4, 14, 0, 1, 0, 4, 15, 0, 0, 0, 4, 17, 1, 0, 0, 4, 18, 0, 0, 0, 5, 8, 0, 0, 0, 5, 14, 0, 1, 1, 5, 15, 0, 0, 1, 5, 17, 1, 0, 0, 5, 19, 0, 0, 0, 6, 14, 0, 0, 0, 6, 15, -1, 0, 1, 6, 17, 0, 0, 1, 6, 18, -1, 0, 1, 7, 10, 0, 0, 0, 7, 14, 0, 1, 0, 8, 9, 0, 0, 0, 8, 14, 0, 1, 1, 9, 14, 0, 1, 1, 9, 15, -1, 1, 2, 9, 17, 0, 0, 1, 9, 20, 0, 0, 0, 10, 14, 0, 1, 0, 10, 15, 0, 1, 1, 10, 16, 0, 1, 1, 10, 17, 0, 1, 1, 11, 12, 0, 0, 0, 11, 14, -1, 1, 1, 11, 15, -1, 1, 1, 11, 17, 0, 0, 0, 11, 20, 0, 0, -1, 12, 13, 0, 0, 0, 12, 14, -1, 1, 1, 13, 14, -1, 1, 1, 13, 15, -1, 1, 2, 13, 17, 0, 1, 1, 13, 19, -1, 1, 1, 15, 16, 0, 0, 0, 15, 18, 0, 0, 0, 15, 19, 0, 0, -1, 15, 20, 1, -1, -2, 16, 17, 0, 0, 0, 17, 18, -1, 0, 0, 17, 19, -1, 0, 0, 17, 20, 0, 0, -1)






Geometric data



Systre equilibrium placement (barycentric embedding) maximising unit cell volume





 Spacegroup: I41/acd



 Parameters:



 a   b   c   alpha   beta   gamma



			 3.20821
			 3.20821
			 3.86936
			 90.0
			 90.0
			 90.0








 Vertex positions:




				 X-pos
				 Y-pos
				 Z-pos





						 0.13636
						 0.38636
						 0.125




						 0
						 0.25
						 0.375




						 0.25
						 0.31818
						 0







Edge end points:











Systre coordinates favouring equal edge-lengths





 Spacegroup: I41/acd




 Parameters:



 a   b   c   alpha   beta   gamma



			 2.31993
			 2.31993
			 3.88753
			 90.0
			 90.0
			 90.0








Vertex positions:




					 X-pos
					 Y-pos
					 Z-pos





							 0.07379
							  0.32379
							  0.125




							 0
							  0.25
							  0.375




							 0.26792
							  0
							  0.25








Edge end points:















Hyperbolic sources





h-nets with faithful topology




		1 record listed.





			h-net name
			Orbifold symbol
			Transitivity (Vert,Edge,Face)
			Vertex Degree
			2D Vertex Symbol






					Net details
					hqc881

				*2224
				 (3,3,2)
				{6,12,4}
				{4.3.3.4.3.3}{4.3.3.4.3.3.4.3.3....











h-nets with edge collapse



 No items to display.
