s-net: sqc1661
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 6 |
| Edges per primitive translational unit | 16 |
| Transitivity (vertex,edge) | (2,4) |
| Vertex degrees | {6,5} |
| Vertex coordination sequence | [(6, 10, 26, 62, 112, 174, 248, 328, 424, 532), (5, 13, 28, 63, 117, 178, 249, 333, 426, 531)] |
| Wells’ vertex symbol | [3^6.4^6.5^3, 3^3.4^2.5.8^2.9^2] |
| Systre key | (3, 1, 1, -1, 0, 0, 1, 2, -1, 0, 0, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 2, 2, -1, 0, 0, 2, 4, -1, 0, 0, 2, 4, 0, 0, 0, 3, 3, 0, -1, 0, 3, 5, 0, -1, 0, 3, 5, 0, 0, 0, 4, 4, -1, 0, 0, 4, 6, 0, 0, 0, 5, 5, 0, -1, 0, 5, 6, 0, -1, 1, 5, 6, 0, 0, 1, 6, 6, 0, -1, 0) |

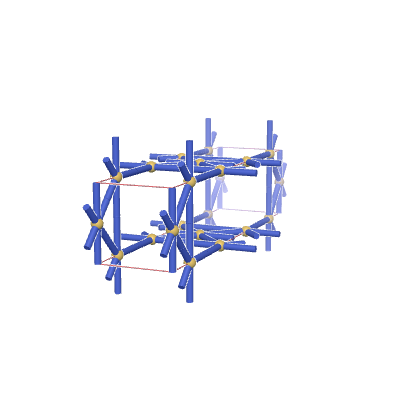

Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: P42/mmc
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 1.17157 | 1.17157 | 4.68629 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0.5 | 0 |
| 0 | 0 | 0.125 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: P42/mmc
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 1.00007 | 1.00007 | 5.46381 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0.5 | 0 |
| 0 | 0 | 0.15849 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc631 | *2224 | (2,4,3) | {5,6} | {8.3.3.3.8}{3.3.3.3.3.3} |
