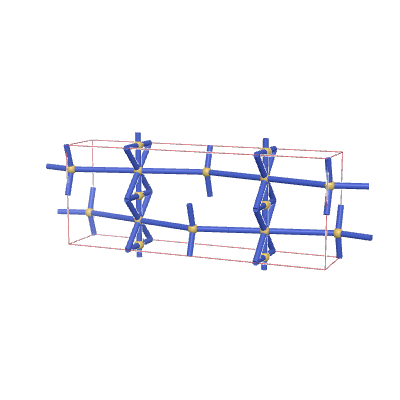

s-net: sqc1907
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 6 |
| Edges per primitive translational unit | 16 |
| Transitivity (vertex,edge) | (3,5) |
| Vertex degrees | {4,8,4} |
| Vertex coordination sequence | [(4, 16, 50, 112, 200, 312, 448, 608, 792, 1000), (8, 28, 68, 132, 220, 332, 468, 628, 812, 1020), (4, 16, 46, 100, 178, 280, 406, 556, 730, 928)] |
| Wells’ vertex symbol | [4^4.6^2, 4^12.6^15.8, 4^4.6^2] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 2, 0, 2, 0, 1, 2, 1, 0, 0, 1, 2, 1, 2, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 1, 6, 0, 0, 0, 2, 3, 0, 0, 1, 2, 4, 0, -1, 0, 2, 5, -1, -1, 0, 2, 6, -1, -2, -1, 3, 6, -1, -2, -1, 3, 6, 0, -2, -1, 4, 4, 0, -1, 0, 5, 5, 0, -1, 0) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 4.87971 | 1.84354 | 0.94464 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0.25 | 0.16667 |
| 0.25 | 0.25 | 0.5 |
| 0.25 | 0 | 0.5 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 4.65625 | 2.02355 | 0.84247 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0.25 | 0.34944 |
| 0.25 | 0.25 | 0.5 |
| 0.25 | 0 | 0.5 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc95 | *2224 | (2,3,1) | {4,8} | {4.4.4.4}{4.4.4.4.4.4.4.4} |
