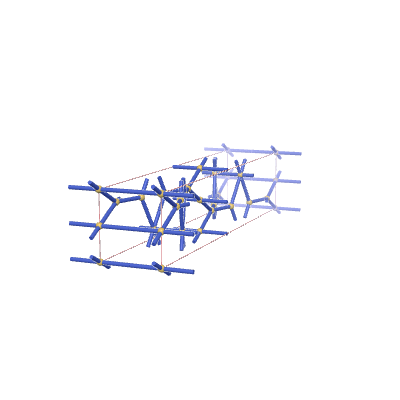

s-net: sqc3488
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 10 |
| Edges per primitive translational unit | 20 |
| Transitivity (vertex,edge) | (4,5) |
| Vertex degrees | {4,4,3,6} |
| Vertex coordination sequence | [(4, 12, 28, 60, 104, 156, 210, 290, 378, 490), (4, 10, 30, 58, 94, 146, 208, 290, 386, 484), (3, 12, 28, 53, 89, 136, 201, 278, 360, 468), (6, 16, 30, 54, 86, 136, 202, 280, 370, 456)] |
| Wells’ vertex symbol | [6^4.8^2, 5.6.8^4, 4.5^2, 4^2.5^4.6^4.8^3.9^2] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 2, 1, 0, 0, 1, 3, 0, 0, 0, 1, 3, 0, 1, 0, 1, 4, 0, 0, 0, 1, 4, 1, 0, 0, 2, 5, 0, 0, 0, 3, 6, 0, 0, 0, 3, 6, 1, 0, 0, 3, 7, 0, 0, 0, 3, 7, 1, 0, 0, 4, 8, 0, 0, 0, 5, 6, 0, 0, 0, 5, 9, 0, 0, 0, 5, 10, 0, 0, 0, 7, 8, 0, -1, 0, 8, 9, 1, 0, 1, 8, 10, 0, 0, 1, 9, 9, 0, -1, 0, 10, 10, 0, -1, 0) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Imma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 1.61648 | 1.75916 | 8.35309 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 0.25 | 0.1 |
| 0.16667 | 0.25 | 0.2 |
| 0.25 | 0.25 | 0.75 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Imma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 1.13039 | 1.63165 | 9.23509 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 0.25 | 0.10339 |
| 0.06384 | 0.25 | 0.30791 |
| 0.25 | 0.25 | 0.75 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc1495 | *222222 | (4,5,2) | {4,4,3,6} | {8.8.8.8}{8.8.8.8}{8.4.8}{8.8.4.... |
