s-net: sqc3595
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 10 |
| Edges per primitive translational unit | 20 |
| Transitivity (vertex,edge) | (4,5) |
| Vertex degrees | {6,3,4,4} |
| Vertex coordination sequence | [(6, 16, 38, 72, 116, 166, 244, 296, 390, 462), (3, 12, 31, 65, 105, 163, 215, 305, 361, 481), (4, 10, 34, 62, 110, 154, 226, 282, 394, 450), (4, 12, 28, 60, 92, 150, 204, 284, 336, 474)] |
| Wells’ vertex symbol | [4^2.6^8.8.9^4, 4.7^2, 6.7^4.10, 6^4.7.8] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 2, 1, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 2, 3, -1, -1, 0, 2, 4, 0, 1, 0, 3, 5, 0, 0, 0, 3, 6, 0, 0, 0, 4, 7, 0, 0, 0, 4, 8, 0, 0, 0, 5, 9, 0, 0, 0, 5, 10, 0, 0, 0, 6, 9, -1, -2, 1, 6, 10, 0, 0, 1, 7, 9, -1, -1, 0, 7, 10, -1, -1, 0, 8, 9, -1, -3, 1, 8, 10, 0, -1, 1, 9, 10, 0, 1, 0, 9, 10, 1, 1, 0) |
Geometric data

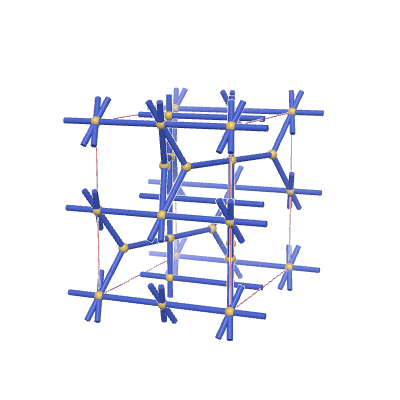

Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.42231 | 3.01864 | 3.20379 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0 | 0 |
| 0.41667 | 0.25 | 0.16667 |
| 0.25 | 0.25 | 0.5 |
| 0.25 | 0 | 0.5 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 1.99292 | 3.79033 | 1.97529 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0 | 0 |
| 0.37923 | 0.25 | 0.14605 |
| 0.25 | 0.25 | 0.5 |
| 0.25 | 0 | 0.5 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc1481 | *222222 | (4,5,2) | {6,3,4,4} | {6.7.6.6.7.6}{6.7.7}{7.7.7.7}{7.... |
