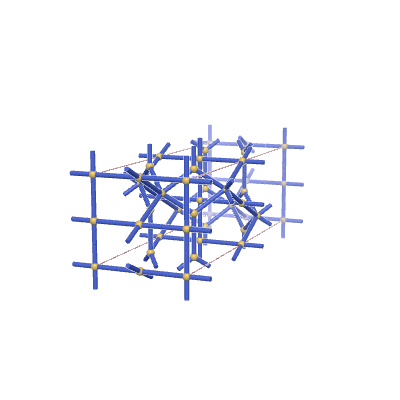

s-net: sqc3789
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 10 |
| Edges per primitive translational unit | 20 |
| Transitivity (vertex,edge) | (4,5) |
| Vertex degrees | {4,4,6,3} |
| Vertex coordination sequence | [(4, 12, 32, 54, 84, 142, 218, 260, 332, 420), (4, 16, 28, 58, 104, 154, 198, 266, 344, 482), (6, 12, 32, 58, 98, 146, 210, 258, 374, 418), (3, 11, 26, 53, 79, 128, 185, 277, 310, 421)] |
| Wells’ vertex symbol | [5^4.8^2, 5^4.6.7, 4^2.5.6^2.7^4.8^6, 4.6^2] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 1, 6, 0, 0, 0, 1, 7, 0, 0, 0, 2, 3, 1, 0, 0, 2, 8, 0, 0, 0, 3, 8, 0, 0, 0, 4, 6, 1, 0, 0, 4, 8, 0, 1, 0, 5, 8, 0, 0, 1, 5, 9, 0, 0, 0, 5, 9, 0, 1, 0, 6, 8, 0, 1, 0, 7, 8, -1, 0, 1, 7, 10, 0, 0, 0, 7, 10, 0, 1, 0, 9, 10, 0, 0, 0, 9, 10, 1, 0, 0) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Imma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.11866 | 1.96254 | 6.36033 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 0 | 0.5 |
| 0 | 0.75 | 0.66667 |
| 0.25 | 0 | 0.25 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Imma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.00003 | 2.00004 | 6.2924 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 0 | 0.5 |
| 0 | 0.25 | 0.36237 |
| 0.25 | 0.50001 | 0.25 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc1496 | *222222 | (4,5,2) | {4,4,6,3} | {8.8.8.8}{8.8.8.8}{8.4.8.8.4.8}{... |
