s-net: sqc4182
















					Systre crystallographic geometry file (.cgd)











Links to this net in other databases





			topcryst










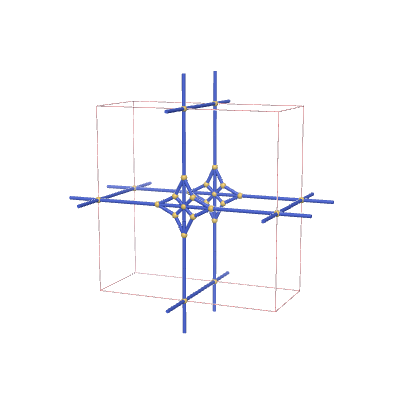

Topological data





Vertices per primitive translational unit 11


Edges per primitive translational unit 22


Transitivity (vertex,edge)(4,5)


Vertex degrees {3,4,8,4}


Vertex coordination sequence  [(3, 7, 8, 24, 60, 94, 122, 156, 209, 265), (4, 8, 12, 32, 62, 92, 128, 168, 214, 266), (8, 4, 12, 36, 78, 110, 134, 174, 234, 286), (4, 12, 28, 44, 56, 80, 128, 174, 204, 252)]


Wells’ vertex symbol [3^2.4, 3^2.4.10^3, 3^8.4^8.5^8.6^4, 10^4.12.16]


Systre key (3, 1, 1, -1, 0, 0, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 2, 4, 0, 0, 0, 2, 5, 0, 0, 0, 2, 6, 0, 0, 0, 3, 5, 0, 1, 0, 3, 7, 0, 0, 0, 3, 8, 0, 0, 0, 4, 5, 0, 0, 0, 4, 9, 0, 0, 0, 5, 6, 0, 0, 0, 5, 7, 0, -1, 0, 5, 8, 0, -1, 0, 5, 9, 0, 0, 0, 5, 10, 0, 0, 0, 6, 10, 0, 0, 0, 7, 9, 0, 1, 0, 8, 10, 0, 1, 0, 9, 11, 0, 0, 0, 10, 11, 0, 0, 1, 11, 11, -1, 0, 0)






Geometric data



Systre equilibrium placement (barycentric embedding) maximising unit cell volume





 Spacegroup: P4/mmm



 Parameters:



 a   b   c   alpha   beta   gamma



			 5.48068
			 5.48068
			 2.29319
			 90.0
			 90.0
			 90.0








 Vertex positions:




				 X-pos
				 Y-pos
				 Z-pos





						 0.45
						 0.45
						 0




						 0.35
						 0.5
						 0




						 0.5
						 0.5
						 0




						 0.5
						 0
						 0







Edge end points:











Systre coordinates favouring equal edge-lengths





 Spacegroup: P4/mmm




 Parameters:



 a   b   c   alpha   beta   gamma



			 4.30007
			 4.30007
			 1.03028
			 90.0
			 90.0
			 90.0








Vertex positions:




					 X-pos
					 Y-pos
					 Z-pos





							 0.3158
							  0.3158
							  0




							 0.23952
							  0.5
							  0




							 0.5
							  0.5
							  0




							 0.5
							  0
							  0








Edge end points:















Hyperbolic sources





h-nets with faithful topology




		2 records listed.





			h-net name
			Orbifold symbol
			Transitivity (Vert,Edge,Face)
			Vertex Degree
			2D Vertex Symbol






					Net details
					hqc1866

				*2224
				 (4,5,2)
				{4,4,3,8}
				{10.10.10.10}{10.3.3.10}{10.3.3}...





					Net details
					hqc1876

				*2244
				 (4,5,2)
				{4,4,3,8}
				{20.20.20.20}{20.3.3.20}{20.3.3}...











h-nets with edge collapse



 No items to display.
