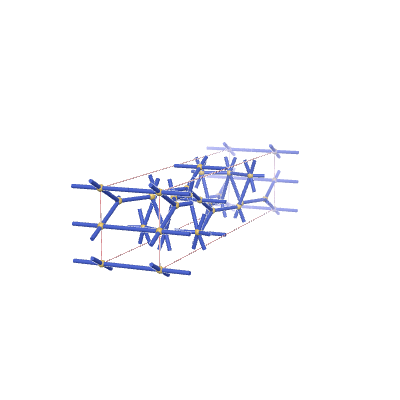

s-net: sqc4337
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 10 |
| Edges per primitive translational unit | 22 |
| Transitivity (vertex,edge) | (4,6) |
| Vertex degrees | {4,4,4,6} |
| Vertex coordination sequence | [(4, 12, 32, 72, 116, 164, 242, 320, 434, 522), (4, 12, 34, 68, 111, 170, 239, 334, 424, 546), (4, 13, 30, 58, 103, 163, 238, 311, 410, 520), (6, 16, 32, 58, 91, 154, 237, 322, 400, 508)] |
| Wells’ vertex symbol | [6^4.8^2, 6^2.7^4, 4^3.6^3, 4^6.6^7.8^2] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 2, 1, 0, 0, 1, 3, 0, 0, 0, 1, 3, 0, 1, 0, 1, 4, 0, 0, 0, 1, 4, 0, 1, 0, 2, 5, 0, 0, 0, 2, 5, 0, 1, 0, 2, 6, 0, 0, 0, 2, 6, 0, 1, 0, 3, 6, 0, 0, 0, 3, 7, 0, 0, 0, 4, 5, 1, 0, 0, 4, 7, 1, 0, 0, 5, 8, 0, 0, 0, 6, 8, 1, 0, 0, 7, 9, 0, 0, 0, 7, 10, 0, 0, 0, 8, 9, 0, 1, 1, 8, 10, 0, 0, 1, 9, 9, -1, 0, 0, 10, 10, -1, 0, 0) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Imma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 1.54626 | 1.84371 | 8.44659 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 0.25 | 0.10714 |
| 0.2 | 0.25 | 0.28571 |
| 0 | 0.25 | 0.73214 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Imma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 1.00039 | 1.93536 | 9.36534 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 0.25 | 0.09344 |
| 0.25706 | 0.25 | 0.19662 |
| 0 | 0.25 | 0.70377 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc1788 | *222222 | (4,6,2) | {4,4,4,6} | {7.7.7.7}{7.7.7.7}{7.4.4.7}{7.4.... |
