s-net: sqc4386
 |
|

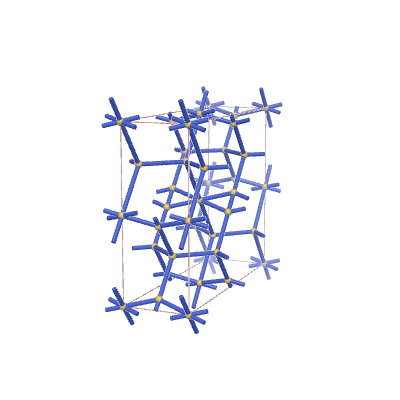

| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 10 |
| Edges per primitive translational unit | 22 |
| Transitivity (vertex,edge) | (4,6) |
| Vertex degrees | {4,6,4,4} |
| Vertex coordination sequence | [(4, 12, 24, 49, 85, 107, 166, 237, 260, 355), (6, 12, 32, 62, 88, 134, 202, 226, 310, 420), (4, 12, 28, 44, 76, 120, 158, 204, 292, 354), (4, 16, 34, 58, 100, 140, 182, 260, 320, 376)] |
| Wells’ vertex symbol | [3^2.4.6^2.7, 3^2.6^10.7^2.8, 6^6, 6^6] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 2, 1, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 1, 5, 1, 0, 0, 2, 5, 0, 0, 0, 2, 6, 0, 0, 0, 3, 4, 0, 1, 0, 3, 4, 1, 1, 0, 3, 7, 0, 0, 0, 4, 7, 0, 0, 1, 5, 8, 0, 0, 0, 6, 8, 0, 1, 1, 6, 8, 1, 1, 1, 6, 9, 0, 0, 0, 7, 9, 0, 0, -1, 7, 9, 1, 0, -1, 7, 10, 0, 0, 0, 7, 10, 1, 0, 0, 8, 10, 0, 0, 0, 9, 10, 0, 0, 1) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Imma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 1.60247 | 4.13926 | 4.99044 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0.05 | 0.53571 |
| 0 | 0 | 0 |
| 0 | 0.75 | 0.32143 |
| 0 | 0.25 | 0.16667 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Imma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 1.73196 | 3.00157 | 3.64671 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0.138 | 0.42324 |
| 0 | 0 | 0 |
| 0 | 0.25 | 0.68147 |
| 0 | 0.25 | 0.18135 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc1773 | *222222 | (4,6,2) | {4,6,4,4} | {3.8.8.3}{3.8.8.3.8.8}{8.8.8.8}{... |
