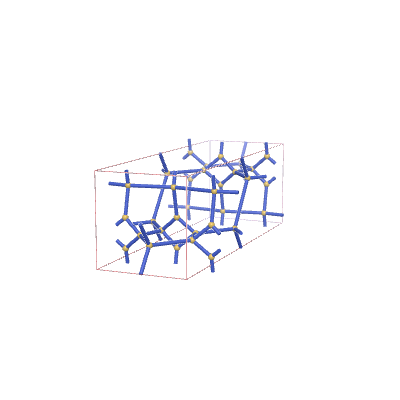

s-net: sqc4497
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 12 |
| Edges per primitive translational unit | 22 |
| Transitivity (vertex,edge) | (4,6) |
| Vertex degrees | {4,4,3,4} |
| Vertex coordination sequence | [(4, 12, 28, 50, 79, 124, 183, 248, 316, 412), (4, 9, 19, 41, 69, 106, 157, 220, 299, 378), (3, 8, 18, 32, 57, 93, 136, 202, 276, 368), (4, 10, 20, 32, 53, 102, 163, 226, 292, 384)] |
| Wells’ vertex symbol | [6.8^5, 4.6^3.8^2, 4.6^2, 6^4.8^2] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 2, 1, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 2, 5, 0, 0, 0, 2, 6, 0, 0, 0, 3, 6, 0, 1, 0, 3, 7, 0, 0, 0, 3, 8, 0, 0, 0, 4, 5, 0, 1, 1, 4, 7, 0, 0, 1, 4, 8, 0, 0, 1, 5, 9, 0, 0, 0, 5, 10, 0, 0, 0, 6, 9, 0, 0, 1, 6, 10, 0, 0, 1, 7, 11, 0, 0, 0, 8, 11, 1, 0, 0, 9, 12, 0, 0, 0, 10, 12, 1, 0, 0, 11, 12, 0, 1, 0, 11, 12, 0, 1, 1) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Imma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.59817 | 2.63586 | 7.84475 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0.25 | 0.56579 |
| 0.3 | 0.25 | 0.69737 |
| 0 | 0.58333 | 0.21053 |
| 0 | 0.25 | 0.23684 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Imma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 1.76047 | 1.37296 | 4.32818 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0.25 | 0.41713 |
| 0.17283 | 0.25 | 0.63829 |
| 0 | 0.52206 | 0.31241 |
| 0 | 0.25 | 0.30447 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc1781 | *222222 | (4,6,2) | {4,4,3,4} | {10.10.10.10}{10.6.6.10}{10.6.6}... |
