s-net: sqc4511
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 10 |
| Edges per primitive translational unit | 22 |
| Transitivity (vertex,edge) | (4,6) |
| Vertex degrees | {6,4,4,4} |
| Vertex coordination sequence | [(6, 14, 26, 50, 94, 142, 186, 266, 352, 440), (4, 13, 28, 54, 88, 137, 198, 258, 346, 420), (4, 12, 26, 46, 78, 128, 176, 242, 314, 414), (4, 12, 34, 62, 94, 146, 208, 278, 332, 438)] |
| Wells’ vertex symbol | [3^4.4^2.5^2.6^4.7^3, 3.5^2.6^2.7, 5^4.7.8, 6^4.8.9] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 2, 1, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 2, 5, 0, 0, 0, 2, 6, 0, 0, 0, 3, 7, 0, 0, 0, 3, 8, 0, 0, 0, 3, 9, 0, 0, 0, 4, 7, 0, 1, 0, 4, 8, 0, 1, 0, 4, 10, 0, 0, 0, 5, 7, 0, 0, 0, 5, 8, -1, 0, 0, 5, 10, 0, 0, 1, 6, 7, 0, 1, 0, 6, 8, -1, 1, 0, 6, 9, 0, 1, 1, 7, 8, -1, 0, 0, 7, 8, 0, 0, 0, 9, 9, -1, 0, 0, 10, 10, -1, 0, 0) |
Geometric data

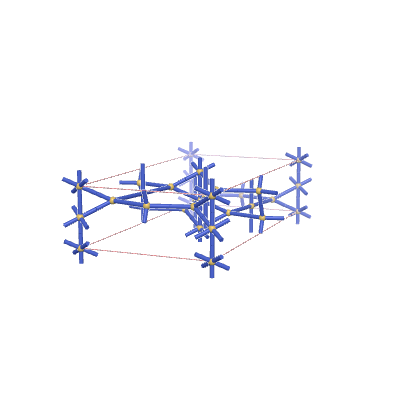

Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Imma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 3.342 | 1.48187 | 6.49919 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0 | 0 |
| 0.1875 | 0.25 | 0.06818 |
| 0 | 0.25 | 0.47727 |
| 0.25 | 0.25 | 0.25 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Imma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 3.56099 | 1.12675 | 6.6502 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0 | 0 |
| 0.21509 | 0.25 | 0.09559 |
| 0 | 0.25 | 0.43478 |
| 0.25 | 0.25 | 0.25 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc1784 | *222222 | (4,6,2) | {6,4,4,4} | {6.5.6.6.5.6}{6.6.5.5}{5.5.5.5}{... |
