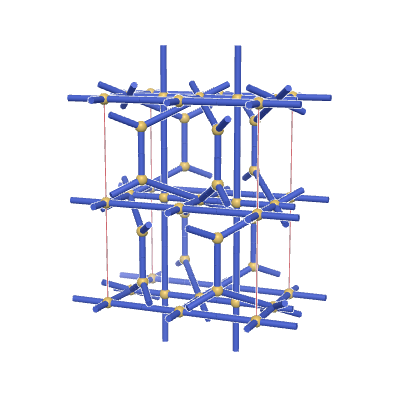

s-net: sqc4598
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 10 |
| Edges per primitive translational unit | 22 |
| Transitivity (vertex,edge) | (4,6) |
| Vertex degrees | {3,8,4,4} |
| Vertex coordination sequence | [(3, 16, 40, 99, 175, 296, 428, 598, 804, 1022), (8, 20, 58, 114, 206, 320, 482, 644, 852, 1112), (4, 20, 48, 100, 196, 340, 484, 676, 902, 1136), (4, 20, 48, 114, 192, 308, 454, 636, 842, 1084)] |
| Wells’ vertex symbol | [5.6^2, 5^8.6^12.7^4.8^2.10^2, 5^4.6.8, 5.6^4.8] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 1, 5, 1, 0, 0, 1, 6, 0, 0, 0, 1, 7, 0, 0, 0, 1, 8, 0, 0, 0, 2, 8, 0, 1, 0, 2, 9, 0, 0, 0, 3, 7, -1, 1, 0, 3, 7, 0, 0, 1, 3, 9, -1, 0, 0, 4, 6, 1, 0, -1, 4, 9, 1, -1, -1, 5, 10, 0, 0, 0, 5, 10, 1, -1, -1, 6, 9, -2, 0, 0, 7, 9, 0, -1, -1, 8, 9, -1, -1, -1, 9, 10, 1, 0, 0, 9, 10, 2, 0, 0) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.5179 | 3.25002 | 1.62453 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.25 | 0.125 | 0 |
| 0 | 0 | 0.5 |
| 0 | 0 | 0 |
| 0.25 | 0 | 0.5 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.42041 | 2.15104 | 1.90921 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.25 | 0.00037 | 0 |
| 0 | 0 | 0.5 |
| 0 | 0 | 0 |
| 0.25 | 0 | 0.5 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc1783 | *222222 | (4,6,2) | {3,8,4,4} | {6.5.6}{6.6.5.5.6.6.5.5}{5.5.5.5... |
