s-net: sqc4628
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |

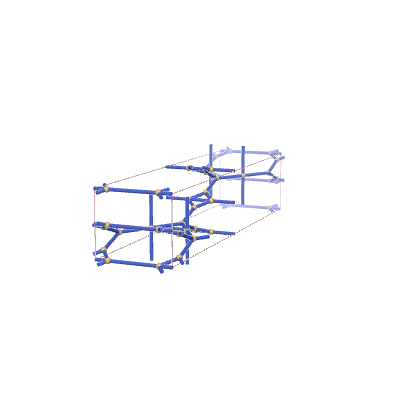

Topological data
| Vertices per primitive translational unit | 12 |
| Edges per primitive translational unit | 22 |
| Transitivity (vertex,edge) | (4,6) |
| Vertex degrees | {4,3,4,4} |
| Vertex coordination sequence | [(4, 6, 12, 28, 58, 108, 182, 270, 362, 458), (3, 6, 15, 28, 63, 104, 181, 258, 348, 446), (4, 10, 22, 50, 78, 142, 196, 284, 370, 492), (4, 12, 28, 56, 100, 148, 208, 278, 380, 482)] |
| Wells’ vertex symbol | [3^2.4.9^2.10, 3.9^2, 6.9^4.10, 6^4.8.9] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 2, 2, -1, 0, 0, 2, 6, 0, 0, 0, 3, 3, -1, 0, 0, 3, 6, 0, 1, 0, 4, 7, 0, 0, 0, 4, 8, 0, 0, 0, 5, 9, 0, 0, 0, 5, 10, 0, 0, 0, 6, 11, 0, 0, 0, 6, 12, 0, 0, 0, 7, 8, 0, -1, 0, 7, 8, 0, 0, 0, 7, 12, 0, 0, 1, 8, 12, 0, 0, 1, 9, 10, 0, -1, 0, 9, 10, 0, 0, 0, 9, 11, -1, 0, 1, 10, 11, -1, 0, 1) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Imma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.33252 | 1.99299 | 9.28073 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.16667 | 0 | 0 |
| 0 | 0.08333 | 0.95 |
| 0 | 0.75 | 0.15 |
| 0.25 | 0.25 | 0.75 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Imma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.00015 | 1.00029 | 10.80683 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.25 | 0 | 0 |
| 0 | 0.50647 | 0.08012 |
| 0 | 0.75 | 0.16987 |
| 0.25 | 0.25 | 0.75 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc1765 | *222222 | (4,6,2) | {4,3,4,4} | {3.16.16.3}{3.16.16}{16.16.16.16... |
