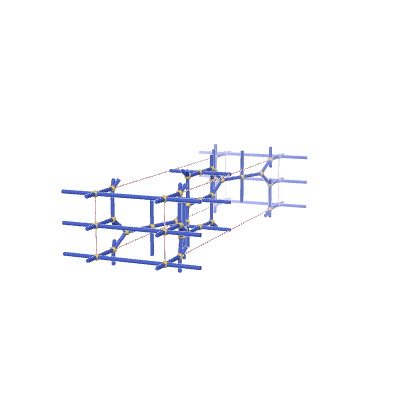

s-net: sqc4664
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 12 |
| Edges per primitive translational unit | 22 |
| Transitivity (vertex,edge) | (4,6) |
| Vertex degrees | {4,4,3,4} |
| Vertex coordination sequence | [(4, 12, 30, 58, 106, 182, 280, 410, 562, 730), (4, 9, 21, 46, 85, 140, 228, 349, 498, 670), (3, 8, 19, 40, 77, 138, 227, 348, 498, 670), (4, 10, 20, 40, 88, 168, 274, 410, 562, 730)] |
| Wells’ vertex symbol | [7.8^4.10, 4.6^2.7^3, 4.6^2, 6^4.10^2] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 2, 3, 1, 0, 0, 2, 4, 1, 0, 0, 2, 6, 0, 0, 0, 3, 7, 0, 0, 0, 4, 8, 0, 0, 0, 5, 5, 0, -1, 0, 5, 9, 0, 0, 0, 6, 6, 0, -1, 0, 6, 10, 0, 0, 0, 7, 7, -1, 0, 0, 7, 11, 0, 0, 0, 8, 8, -1, 0, 0, 8, 12, 0, 0, 0, 9, 10, -1, 0, 0, 9, 11, 0, -1, 1, 9, 12, 0, 0, 1, 10, 11, 0, -1, 1, 10, 12, 0, 0, 1) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Imma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.00058 | 1.70043 | 9.31127 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 0 | 0.9 |
| 0.08333 | 0.75 | 0.15 |
| 0.25 | 0.25 | 0.75 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Imma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 1.00402 | 0.93029 | 8.07111 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 0.73803 | 0.09045 |
| 0.25885 | 0.25 | 0.64203 |
| 0.25 | 0.25 | 0.75 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc1781 | *222222 | (4,6,2) | {4,4,3,4} | {10.10.10.10}{10.6.6.10}{10.6.6}... |
