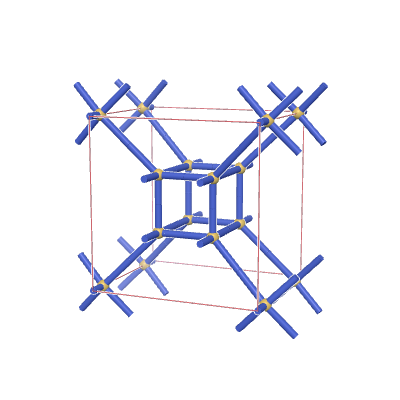

s-net: sqc5617
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 10 |
| Edges per primitive translational unit | 25 |
| Transitivity (vertex,edge) | (2,5) |
| Vertex degrees | {5,5} |
| Vertex coordination sequence | [(5, 16, 33, 54, 86, 126, 166, 214, 274, 338), (5, 14, 31, 56, 85, 120, 165, 216, 271, 334)] |
| Wells’ vertex symbol | [4^4.6^6, 4^6.6^4] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 3, 1, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 2, 4, 0, 1, 0, 2, 6, 0, 0, 0, 2, 6, 1, 0, 0, 2, 7, 0, 0, 0, 3, 6, 0, 0, 0, 3, 8, 0, 0, 0, 3, 9, 0, 0, 0, 4, 5, 0, 0, 1, 4, 7, 0, -1, 1, 4, 8, 0, 0, 0, 5, 7, 0, 0, 0, 5, 9, 0, 0, 0, 5, 9, 1, 0, 0, 6, 8, 0, 1, 0, 6, 10, 0, 0, 0, 7, 10, 0, 0, 0, 7, 10, 1, 0, 0, 8, 9, 0, 0, 1, 8, 10, 0, -1, 1, 9, 10, 0, 0, 0) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: P4/mmm
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.53625 | 2.53625 | 1.9949 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0 | 0.15385 |
| 0.33333 | 0.33333 | 0.23077 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: P4/mmm
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.41423 | 2.41423 | 2.0 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0 | 0.24998 |
| 0.2929 | 0.2929 | 0.25 |
Edge end points:
