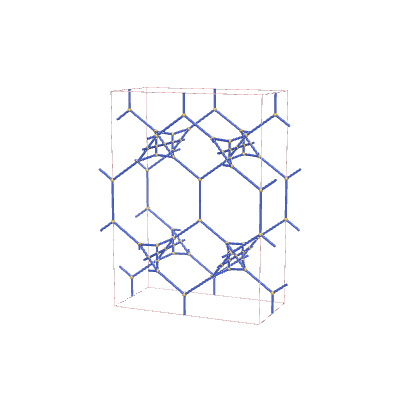

s-net: sqc5623
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 14 |
| Edges per primitive translational unit | 25 |
| Transitivity (vertex,edge) | (5,6) |
| Vertex degrees | {3,4,3,4,4} |
| Vertex coordination sequence | [(3, 7, 10, 20, 35, 57, 74, 97, 131, 159), (4, 7, 14, 23, 42, 57, 77, 103, 131, 166), (3, 8, 16, 28, 38, 58, 82, 106, 131, 160), (4, 6, 10, 14, 30, 50, 72, 92, 114, 152), (4, 8, 10, 20, 36, 56, 74, 100, 130, 156)] |
| Wells’ vertex symbol | [4^2.6, 4^2.6.10^2.12, 10^2.12, 4^4.6^2, 4^4.6^2] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 2, 6, 0, 0, 0, 2, 7, 0, 0, 0, 2, 8, 0, 0, 0, 3, 7, 0, 0, 0, 3, 9, 0, 0, 0, 4, 8, 0, 0, 0, 4, 9, 1, 0, 0, 5, 9, 0, 1, 0, 5, 10, 0, 0, 0, 6, 10, 0, 0, 1, 6, 11, 0, 0, 0, 6, 12, 0, 0, 0, 7, 11, 0, 0, 0, 7, 13, 0, 0, 0, 8, 12, 0, 0, 0, 8, 13, 1, 0, 0, 9, 13, 0, 0, 0, 10, 14, 0, 0, 0, 11, 14, -1, 1, 1, 12, 14, 0, 1, 1, 13, 14, -1, 1, 1) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Fmmm
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 7.24085 | 10.1132 | 3.62103 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.25 | 0.21154 | 0.25 |
| 0.1875 | 0.30769 | 0 |
| 0 | 0.40385 | 0 |
| 0.25 | 0.25 | 0.25 |
| 0.25 | 0.25 | 0 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Fmmm
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 3.91011 | 7.5757 | 3.99529 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.25 | 0.118 | 0.25 |
| 0.23488 | 0.38177 | 0 |
| 0 | 0.43399 | 0 |
| 0.25 | 0.25 | 0.25 |
| 0.25 | 0.25 | 0 |
Edge end points:
