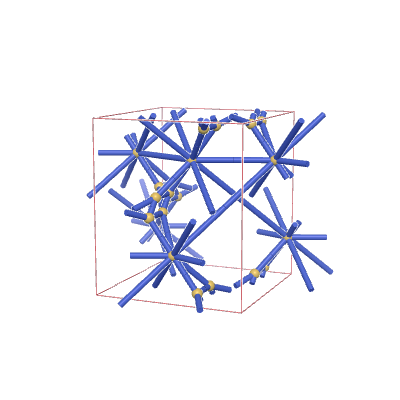

s-net: sqc5634
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 10 |
| Edges per primitive translational unit | 26 |
| Transitivity (vertex,edge) | (3,7) |
| Vertex degrees | {10,4,4} |
| Vertex coordination sequence | [(10, 54, 172, 392, 732, 1192, 1772, 2472, 3292, 4232), (4, 14, 64, 199, 445, 812, 1283, 1879, 2595, 3431), (4, 14, 62, 198, 440, 804, 1274, 1870, 2586, 3422)] |
| Wells’ vertex symbol | [3^2.4^8.5^10.6^11.7^8.8^6, 3.4^2.5.6^2, 3.4^2.5^2.6] |
| Systre key | (3, 1, 1, -1, 0, 0, 1, 1, 0, -1, 0, 1, 2, 0, 0, 0, 1, 2, 0, 0, 1, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 1, 6, 0, 0, 0, 2, 2, -1, 0, -1, 2, 2, 0, -1, -1, 2, 7, 0, 0, 0, 2, 8, 0, 0, 0, 2, 9, 0, 0, 0, 2, 10, 0, 0, 0, 3, 5, 0, 0, 0, 3, 6, 1, 0, 1, 3, 9, 0, 1, 1, 4, 5, 0, -1, -1, 4, 6, 0, 0, 0, 4, 7, -1, 0, 0, 5, 10, 0, 1, 1, 6, 8, -1, 0, 0, 7, 8, 0, 0, 0, 7, 10, 1, 0, 0, 8, 9, 0, 1, 0, 9, 10, 0, 0, 0) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: I212121
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.56749 | 2.93924 | 2.59191 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0.25 | 0.1 |
| 0.16667 | 0.45 | 0.3 |
| 0.16667 | 0.45 | 0.1 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: I212121
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 1.48833 | 1.46602 | 1.4766 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0.25 | 0.19433 |
| 0.16095 | 0.14172 | 0.45651 |
| 0.39267 | 0.10035 | 0.07636 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc2150 | *222222 | (2,6,5) | {4,10} | {4.8.3.4}{3.8.4.4.8.3.8.4.4.8} |
