s-net: sqc5776
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 12 |
| Edges per primitive translational unit | 26 |
| Transitivity (vertex,edge) | (2,6) |
| Vertex degrees | {4,5} |
| Vertex coordination sequence | [(4, 10, 24, 56, 103, 166, 259, 372, 511, 673), (5, 14, 31, 64, 115, 188, 286, 410, 558, 718)] |
| Wells’ vertex symbol | [4^3.6^3, 4^4.6^4.8^2] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 2, 1, 0, 0, 1, 2, 2, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 2, 5, 0, 0, 0, 2, 6, 0, 0, 0, 3, 5, 0, 0, 0, 3, 5, 0, 1, 0, 3, 7, 0, 0, 0, 4, 6, 0, 1, 0, 4, 6, 2, 0, 0, 4, 8, 0, 0, 0, 5, 9, 0, 0, 0, 6, 10, 0, 0, 0, 7, 9, 0, 0, 0, 7, 9, 0, 1, 0, 7, 11, 0, 0, 0, 8, 10, 0, 1, 0, 8, 10, 2, 0, 0, 8, 12, 0, 0, 0, 9, 12, 0, 0, 1, 10, 11, 0, -2, -1, 11, 12, -2, 2, 1, 11, 12, -1, 1, 1, 11, 12, 0, 0, 1) |
Geometric data

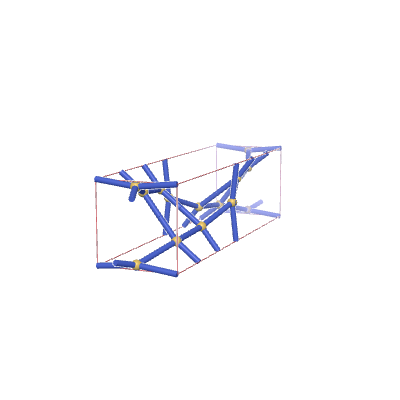

Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: P4222
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 1.46945 | 1.46945 | 5.3285 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.28731 | 0.22388 | 0.16667 |
| 0.5 | 0.05597 | 0 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: P4222
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 0.74178 | 0.74178 | 4.98491 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.35097 | 0.15377 | 0.19307 |
| 0.5 | 0.46567 | 0 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc2151 | *22222 | (2,6,5) | {4,5} | {4.4.6.4}{6.4.4.4.4} |
