s-net: sqc5777
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 12 |
| Edges per primitive translational unit | 26 |
| Transitivity (vertex,edge) | (2,6) |
| Vertex degrees | {5,4} |
| Vertex coordination sequence | [(5, 14, 31, 60, 101, 152, 211, 276, 353, 444), (4, 10, 24, 54, 98, 150, 210, 278, 356, 444)] |
| Wells’ vertex symbol | [4^4.6^4.8^2, 4^3.6^3] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 2, 1, 0, 0, 1, 2, 2, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 2, 5, 0, 0, 0, 2, 6, 0, 0, 0, 3, 5, 0, 0, 0, 3, 7, 0, 0, 0, 3, 8, 0, 0, 0, 4, 6, 2, 0, 0, 4, 9, 0, 0, 0, 4, 10, 0, 0, 0, 5, 9, 0, 1, 0, 5, 10, 0, 1, 0, 6, 7, 0, 0, 1, 6, 8, 0, 0, 1, 7, 10, 0, 1, 0, 7, 11, 0, 0, 0, 8, 9, -2, 0, -1, 8, 12, 0, 0, 0, 9, 11, 0, -1, 1, 10, 12, 0, 0, 0, 11, 12, 0, 1, 0, 11, 12, 1, 1, 0, 11, 12, 2, 1, 0) |
Geometric data

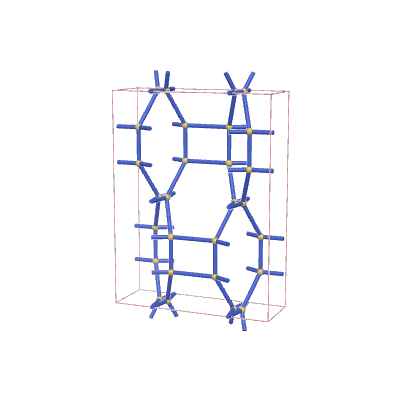

Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 4.0069 | 5.27969 | 1.31979 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.22368 | 0 | 0.5 |
| 0.14474 | 0.16667 | 0.16667 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 3.98102 | 5.94241 | 0.48286 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.36543 | 0 | 0.5 |
| 0.12567 | 0.16582 | 0.15045 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc2151 | *22222 | (2,6,5) | {4,5} | {4.4.6.4}{6.4.4.4.4} |
