s-net: sqc5845
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 12 |
| Edges per primitive translational unit | 26 |
| Transitivity (vertex,edge) | (2,6) |
| Vertex degrees | {4,5} |
| Vertex coordination sequence | [(4, 10, 24, 52, 92, 139, 193, 256, 332, 417), (5, 14, 31, 59, 95, 146, 204, 264, 335, 422)] |
| Wells’ vertex symbol | [4^3.6^3, 4^4.6^4.8^2] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 2, 1, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 2, 6, 0, 0, 0, 2, 7, 0, 0, 0, 2, 8, 0, 0, 0, 3, 6, 0, 1, 0, 3, 7, 0, 0, 0, 3, 9, 0, 0, 0, 4, 6, 1, 0, 0, 4, 7, 0, 1, 0, 4, 10, 0, 0, 0, 5, 8, 0, 0, 0, 5, 8, 1, 0, 0, 5, 11, 0, 0, 0, 5, 12, 0, 0, 0, 6, 12, 0, 0, 1, 7, 11, 1, 0, 1, 8, 9, -1, 0, -1, 8, 10, -2, 0, -1, 9, 11, 1, 0, 1, 9, 12, 0, 1, 1, 10, 11, 1, 1, 1, 10, 12, 1, 0, 1) |
Geometric data

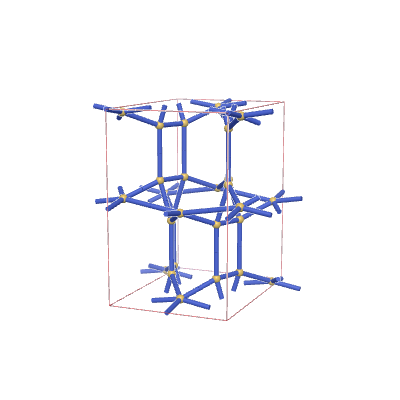

Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.54295 | 3.95274 | 3.36204 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.2 | 0.10526 | 0.4 |
| 0 | 0.47368 | 0.2 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 1.98431 | 3.96197 | 3.5951 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.2011 | 0.1238 | 0.36357 |
| 0 | 0.51582 | 0.86202 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc2151 | *22222 | (2,6,5) | {4,5} | {4.4.6.4}{6.4.4.4.4} |
