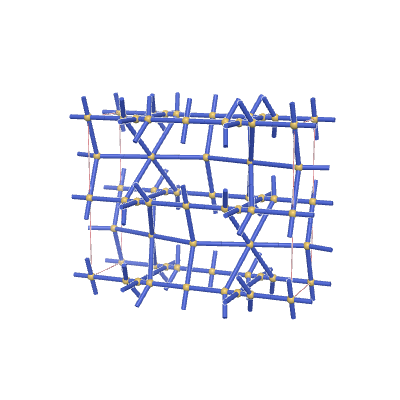

s-net: sqc6015
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 12 |
| Edges per primitive translational unit | 26 |
| Transitivity (vertex,edge) | (5,6) |
| Vertex degrees | {4,6,4,4,4} |
| Vertex coordination sequence | [(4, 12, 24, 62, 102, 188, 254, 386, 484, 658), (6, 14, 38, 66, 130, 184, 292, 376, 528, 640), (4, 8, 24, 48, 110, 152, 276, 346, 500, 572), (4, 14, 28, 71, 107, 197, 253, 395, 468, 666), (4, 12, 32, 66, 124, 194, 290, 400, 530, 676)] |
| Wells’ vertex symbol | [4^4.6^2, 4^4.5^2.6^2.7^4.9^3, 4^4.6^2, 4^2.5^2.6.7, 5^4.8^2] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 1, 6, 0, 0, 0, 1, 7, 0, 0, 0, 2, 8, 0, 0, 0, 2, 9, 0, 0, 0, 2, 10, 0, 0, 0, 3, 8, 1, 0, 0, 3, 10, 1, 0, 0, 3, 11, 0, 0, 0, 4, 8, 0, 1, 0, 4, 9, 0, 1, 0, 4, 12, 0, 0, 0, 5, 8, 1, 0, 2, 5, 9, 0, 0, 0, 5, 11, 0, 0, 1, 6, 8, 0, 1, 2, 6, 10, 0, 0, 0, 6, 12, 0, 0, 1, 7, 8, 1, 1, 2, 7, 9, 0, 1, 0, 7, 10, 1, 0, 0, 11, 11, 0, 0, -1, 12, 12, 0, 0, -1) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 4.70025 | 3.59175 | 1.46572 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0.25 | 0.25 |
| 0.25 | 0.25 | 0.5 |
| 0 | 0 | 0 |
| 0.1875 | 0 | 0 |
| 0.25 | 0 | 0 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 5.1653 | 3.27885 | 1.1215 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0.25 | 0.62385 |
| 0.25 | 0.25 | 0.5 |
| 0 | 0 | 0 |
| 0.14334 | 0 | 0 |
| 0.25 | 0 | 0 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc2230 | *22222 | (5,6,2) | {4,4,6,4,4} | {5.5.5.5}{5.4.4.5}{5.4.4.5.4.4}{... |
