s-net: sqc6190
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 12 |
| Edges per primitive translational unit | 27 |
| Transitivity (vertex,edge) | (2,5) |
| Vertex degrees | {6,3} |
| Vertex coordination sequence | [(6, 19, 45, 86, 139, 204, 283, 376, 482, 600), (3, 7, 18, 43, 85, 139, 204, 283, 376, 482)] |
| Wells’ vertex symbol | [4^8.6^7, 4^2.6] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 1, 6, 0, 0, 0, 1, 7, 0, 0, 0, 2, 3, 1, 0, 0, 2, 4, 0, 1, 0, 2, 6, 0, 0, 1, 2, 7, 1, 0, 0, 2, 8, 0, 0, 0, 3, 4, 0, 1, 0, 3, 6, -1, 1, 1, 3, 7, 0, 1, 0, 3, 9, 0, 0, 0, 4, 6, 0, 0, 1, 4, 7, 0, 0, 1, 4, 10, 0, 0, 0, 5, 8, 0, 0, 0, 5, 11, 0, 0, 0, 6, 7, 0, 1, 0, 6, 11, 0, 0, 0, 7, 12, 0, 0, 0, 8, 12, 1, 0, 0, 9, 10, 0, 1, 0, 9, 11, -1, 1, 1, 10, 12, 0, 0, 1) |
Geometric data

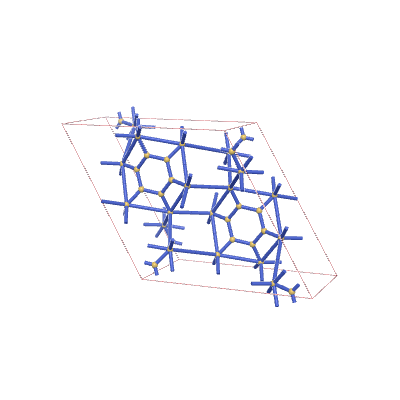

Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: R-3
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 4.91676 | 4.91676 | 2.52256 | 90.0 | 90.0 | 120.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.05128 | 0.25641 | 0.09804 |
| 0.02564 | 0.12821 | 0.01961 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: R-3
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 3.72721 | 3.72721 | 1.85883 | 90.0 | 90.0 | 120.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.08118 | 0.27469 | 0.11115 |
| 0.04963 | 0.08683 | 0.25804 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc920 | *2626 | (2,5,4) | {6,3} | {12.4.4.4.4.12}{4.6.4} |
