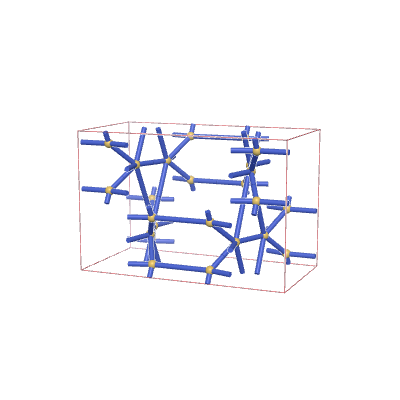

s-net: sqc6485
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 12 |
| Edges per primitive translational unit | 28 |
| Transitivity (vertex,edge) | (2,7) |
| Vertex degrees | {6,4} |
| Vertex coordination sequence | [(6, 22, 51, 98, 166, 254, 363, 490, 631, 792), (4, 11, 31, 73, 139, 225, 332, 458, 600, 760)] |
| Wells’ vertex symbol | [4^4.6^9.8^2, 4^3.6^3] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 2, 1, 0, 0, 1, 3, 0, 0, 0, 1, 3, 0, 1, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 2, 6, 0, 0, 0, 2, 7, 0, 0, 0, 2, 8, 0, 0, 0, 2, 8, 0, 1, 0, 3, 8, 1, 0, 0, 3, 8, 2, 0, 0, 3, 9, 0, 0, 0, 3, 10, 0, 0, 0, 4, 6, 0, 0, 0, 4, 10, -1, 0, 0, 4, 11, 0, 0, 0, 5, 7, 0, 0, 0, 5, 9, -1, 1, 0, 5, 12, 0, 0, 0, 6, 9, 0, 0, 1, 6, 12, 1, -1, 1, 7, 10, 0, 0, 1, 7, 11, 1, 0, 1, 8, 11, 0, -1, 1, 8, 12, 0, -1, 1, 9, 11, 2, -1, 1, 10, 12, 2, -1, 1) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 4.27253 | 2.79689 | 2.15401 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.21429 | 0.25 | 0.3125 |
| 0.14286 | 0.08333 | 0.0625 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 4.00833 | 1.28748 | 1.66216 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.18333 | 0.25 | 0.26198 |
| 0.12497 | 0.10991 | 0.0317 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc2300 | *222222 | (2,7,5) | {4,6} | {4.4.8.4}{8.4.4.8.4.4} |
