s-net: sqc6686
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 12 |
| Edges per primitive translational unit | 28 |
| Transitivity (vertex,edge) | (2,7) |
| Vertex degrees | {6,4} |
| Vertex coordination sequence | [(6, 20, 44, 78, 122, 176, 240, 314, 398, 492), (4, 11, 27, 57, 102, 156, 219, 291, 374, 466)] |
| Wells’ vertex symbol | [4^6.5^2.6^6.8, 4^3.5^2.6] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 3, 1, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 1, 6, 0, 0, 0, 2, 3, 0, 1, 0, 2, 6, -1, 1, 0, 2, 6, 0, 1, 0, 2, 7, 0, 0, 0, 2, 8, 0, 0, 0, 3, 6, -1, 1, 0, 3, 9, 0, 0, 0, 3, 10, 0, 0, 0, 4, 5, 0, 0, 1, 4, 9, 0, 0, 0, 4, 11, 0, 0, 0, 5, 10, 1, 0, 0, 5, 12, 0, 0, 0, 6, 11, 0, 0, -1, 6, 12, 0, 0, 1, 7, 8, 0, 0, 1, 7, 10, 0, 1, 1, 7, 12, -1, 1, 1, 8, 9, 0, 1, -1, 8, 11, 0, 1, -1, 9, 10, 0, 0, 1, 11, 12, 0, 0, 1) |
Geometric data

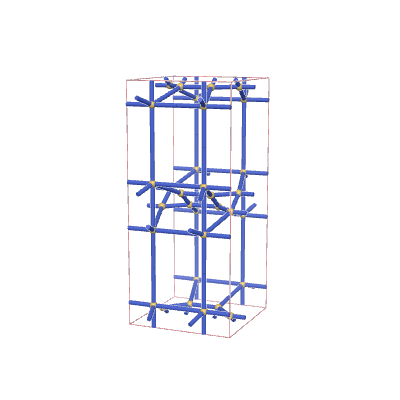

Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.53093 | 5.72975 | 2.53129 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.25 | 0.09375 | 0 |
| 0.35 | 0.03125 | 0.4 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 1.61548 | 4.19515 | 1.9276 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.25 | 0.12505 | 0 |
| 0.15022 | 0.13167 | 0.52109 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc2299 | *222222 | (2,7,5) | {4,6} | {4.8.4.4}{4.4.4.4.8.8} |
