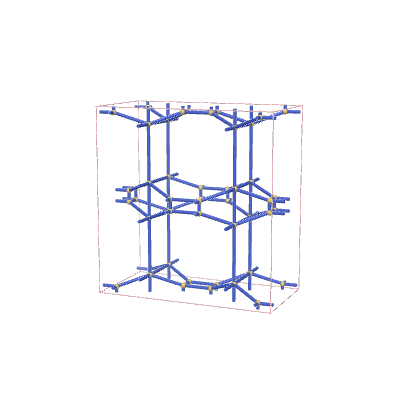

s-net: sqc6688
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 12 |
| Edges per primitive translational unit | 28 |
| Transitivity (vertex,edge) | (2,7) |
| Vertex degrees | {6,4} |
| Vertex coordination sequence | [(6, 18, 38, 66, 102, 146, 198, 258, 326, 402), (4, 9, 21, 47, 85, 130, 182, 242, 310, 386)] |
| Wells’ vertex symbol | [4^8.6^7, 4^5.6] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 3, 1, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 1, 6, 0, 0, 0, 2, 3, 0, 1, 0, 2, 6, -1, 1, 0, 2, 6, 0, 1, 0, 2, 7, 0, 0, 0, 2, 8, 0, 0, 0, 3, 6, -1, 1, 0, 3, 9, 0, 0, 0, 3, 10, 0, 0, 0, 4, 9, 0, 0, 0, 4, 10, 0, 0, 1, 4, 11, 0, 0, 0, 5, 9, 1, 0, -1, 5, 10, 1, 0, 0, 5, 12, 0, 0, 0, 6, 11, 0, 0, 0, 6, 12, 0, 0, 0, 7, 9, 0, 1, 0, 7, 11, 0, 1, 0, 7, 12, -1, 1, 1, 8, 10, 0, 1, 0, 8, 11, 0, 1, -1, 8, 12, -1, 1, 0) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Fmmm
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 5.75372 | 5.93928 | 2.87432 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.25 | 0.09375 | 0.25 |
| 0.08333 | 0.03125 | 0.08333 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Fmmm
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 5.99986 | 4.00047 | 2.00027 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.25 | 0.125 | 0.25 |
| 0.08333 | 0.12498 | 0.24994 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc2297 | *22222 | (2,7,5) | {4,6} | {4.4.4.4}{4.4.4.4.4.4} |
