s-net: sqc6689
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 12 |
| Edges per primitive translational unit | 28 |
| Transitivity (vertex,edge) | (2,7) |
| Vertex degrees | {6,4} |
| Vertex coordination sequence | [(6, 18, 38, 68, 110, 162, 222, 292, 374, 466), (4, 10, 23, 48, 86, 136, 196, 264, 341, 429)] |
| Wells’ vertex symbol | [4^8.6^7, 4^4.6^2] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 3, 1, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 1, 6, 0, 0, 0, 2, 3, 0, 1, 0, 2, 6, -1, 1, 0, 2, 6, 0, 1, 0, 2, 7, 0, 0, 0, 2, 8, 0, 0, 0, 3, 6, -1, 1, 0, 3, 9, 0, 0, 0, 3, 10, 0, 0, 0, 4, 9, 0, 0, 0, 4, 11, 0, 0, 0, 4, 12, 0, 0, 0, 5, 10, 1, 0, 0, 5, 11, 0, 0, 1, 5, 12, 0, 0, 1, 6, 11, 0, 0, 1, 6, 12, 0, 0, 0, 7, 9, 0, 1, 0, 7, 10, 0, 1, -1, 7, 12, -1, 1, 0, 8, 9, 0, 1, 1, 8, 10, 0, 1, 0, 8, 11, 0, 1, 1) |
Geometric data

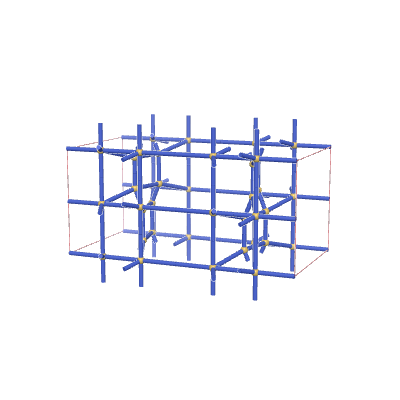

Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 5.64214 | 2.52842 | 2.7699 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.16071 | 0 | 0 |
| 0.23214 | 0.1 | 0.33333 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 4.0059 | 2.005 | 2.48077 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.125 | 0 | 0 |
| 0.13261 | 0.00095 | 0.40296 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc2297 | *22222 | (2,7,5) | {4,6} | {4.4.4.4}{4.4.4.4.4.4} |
