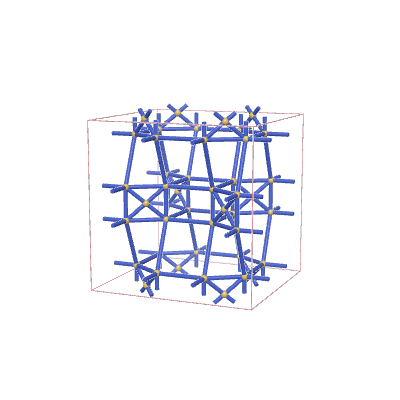

s-net: sqc6786
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 10 |
| Edges per primitive translational unit | 28 |
| Transitivity (vertex,edge) | (2,6) |
| Vertex degrees | {6,4} |
| Vertex coordination sequence | [(6, 17, 37, 65, 98, 142, 194, 249, 317, 393), (4, 12, 34, 62, 96, 136, 192, 250, 306, 394)] |
| Wells’ vertex symbol | [3^2.4^6.5^3.6^4, 3^4.4^2] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 1, 6, 0, 0, 0, 1, 7, 0, 0, 0, 2, 3, 1, 0, 0, 2, 7, 0, 1, 0, 2, 8, 0, 0, 0, 2, 9, 0, 0, 0, 2, 10, 0, 0, 0, 3, 4, 0, 0, 1, 3, 5, -1, 1, -1, 3, 7, 0, 1, 0, 3, 8, -1, 0, 0, 4, 5, -1, 1, -1, 4, 6, 0, 0, 0, 4, 9, 0, 0, 0, 4, 10, -1, 0, -1, 5, 8, 0, -1, 1, 5, 9, 0, -1, 1, 5, 10, 0, 0, 0, 6, 7, 0, 0, 0, 6, 10, -1, 0, -1, 7, 9, 0, -1, 1, 7, 10, -1, 0, -1, 8, 9, 0, 0, 0, 9, 10, -1, 1, -1) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Fmmm
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 4.10355 | 4.10485 | 3.76299 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.15 | 0.1 | 0.32143 |
| 0.25 | 0 | 0.25 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Fmmm
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 4.0534 | 4.01853 | 3.20342 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.128 | 0.14165 | 0.33805 |
| 0.25 | 0 | 0.75 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc332 | *2224 | (2,4,3) | {6,4} | {4.4.3.3.4.4}{3.3.3.3} |
