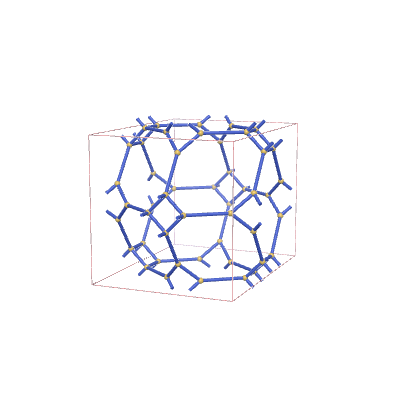

s-net: sqc6930
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 16 |
| Edges per primitive translational unit | 28 |
| Transitivity (vertex,edge) | (2,4) |
| Vertex degrees | {4,3} |
| Vertex coordination sequence | [(4, 8, 13, 21, 34, 51, 67, 82, 102, 130), (3, 6, 13, 23, 31, 45, 65, 86, 108, 126)] |
| Wells’ vertex symbol | [4^3.8^2.10, 4.8^2] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 2, 6, 0, 0, 0, 2, 7, 0, 0, 0, 2, 8, 0, 0, 0, 3, 7, 0, 0, 0, 3, 9, 0, 0, 0, 3, 10, 0, 0, 0, 4, 8, 0, 0, 0, 4, 9, 0, 0, 0, 4, 11, 0, 0, 0, 5, 12, 0, 0, 0, 5, 13, 0, 0, 0, 6, 10, 1, 0, 0, 6, 14, 0, 0, 0, 7, 13, 0, 1, 0, 7, 15, 0, 0, 0, 8, 15, 0, 0, 0, 8, 16, 0, 0, 0, 9, 12, 0, 0, 1, 9, 15, 0, 0, 0, 10, 11, -1, 1, -1, 11, 14, 0, -1, 1, 12, 16, -1, 0, -1, 13, 16, -1, 0, -1, 14, 15, 0, 0, -1) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: I4/mmm
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 4.45745 | 4.45745 | 5.8989 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0.125 | 0.07143 |
| 0.375 | 0 | 0.21429 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: I4/mmm
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 4.22498 | 4.22498 | 5.43774 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0.16736 | 0.09195 |
| 0.35341 | 0 | 0.20563 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc348 | *2224 | (2,4,3) | {4,3} | {4.8.8.4}{8.4.8} |
