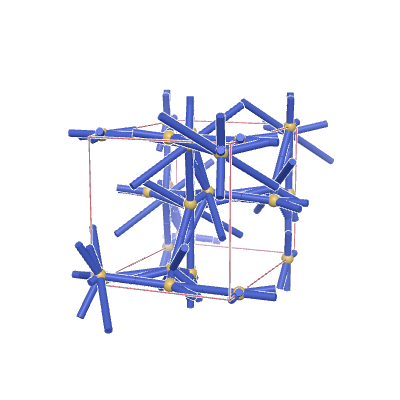

s-net: sqc7426
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 8 |
| Edges per primitive translational unit | 32 |
| Transitivity (vertex,edge) | (2,5) |
| Vertex degrees | {6,10} |
| Vertex coordination sequence | [(6, 29, 109, 256, 501, 835, 1259, 1795, 2433, 3169), (10, 51, 147, 335, 614, 1001, 1483, 2069, 2751, 3531)] |
| Wells’ vertex symbol | [3^6.4^7.5^2, 3^6.4^9.5^21.6^9] |
| Systre key | (3, 1, 1, -1, 0, 0, 1, 2, 0, 0, 0, 1, 2, 0, 1, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 4, 0, 0, 1, 1, 5, 0, 0, 0, 1, 6, 0, 0, 0, 1, 7, 0, 0, 0, 2, 2, -1, -1, 0, 2, 3, 0, 0, 0, 2, 5, 1, 0, -1, 2, 6, 0, -1, 0, 2, 7, 1, 0, -1, 2, 8, 0, 0, 0, 2, 8, 0, 0, 1, 3, 4, 1, 1, 0, 3, 6, 0, -1, 0, 3, 6, 0, 0, 0, 3, 8, -1, 0, 1, 4, 4, -1, 0, 1, 4, 5, 0, 0, 0, 4, 6, -1, -1, 0, 4, 7, 0, 0, -1, 4, 8, -2, -1, 1, 4, 8, -2, 0, 1, 5, 7, 0, 0, -1, 5, 7, 0, 0, 0, 5, 8, -1, 0, 1, 6, 8, -1, 1, 1, 7, 8, -1, 0, 2, 8, 8, -1, -1, 1) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: I4122
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 1.96432 | 1.96432 | 2.72701 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0 | 0.125 |
| 0.0625 | 0.0625 | 0 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: I4122
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 1.20786 | 1.20786 | 1.90471 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0 | 0.36418 |
| 0.26074 | 0.26074 | 0 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc609 | *22222 | (2,4,3) | {10,6} | {4.3.3.3.4.4.3.3.3.4}{3.3.3.3.3.3} |
