s-net: sqc7439
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 12 |
| Edges per primitive translational unit | 32 |
| Transitivity (vertex,edge) | (2,8) |
| Vertex degrees | {8,4} |
| Vertex coordination sequence | [(8, 26, 56, 98, 152, 218, 296, 386, 488, 602), (4, 12, 31, 70, 127, 194, 272, 362, 464, 578)] |
| Wells’ vertex symbol | [3^6.4^10.5^9.6.7^2, 4^4.5.6] |
| Systre key | (3, 1, 1, -1, 0, 0, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, -2, 0, 0, 1, 5, -1, 0, 0, 1, 5, 0, 0, 0, 2, 2, -1, 0, 0, 2, 6, -2, 0, 0, 2, 6, -1, 0, 0, 2, 6, 0, 0, 0, 2, 7, 0, 0, 0, 2, 8, 0, 0, 0, 3, 9, 0, 0, 0, 3, 10, -1, 0, 0, 3, 10, 0, 0, 0, 4, 11, -1, 0, 0, 4, 11, 0, 0, 0, 4, 12, 0, 0, 0, 5, 5, -1, 0, 0, 5, 6, 0, 1, 0, 5, 10, 0, 0, 0, 5, 11, 1, 0, 0, 6, 6, -1, 0, 0, 6, 9, 2, -1, -1, 6, 12, 0, 0, 1, 7, 11, -1, 0, 1, 7, 12, -1, 0, 1, 7, 12, 0, 0, 1, 8, 9, 0, -1, -1, 8, 9, 1, -1, -1, 8, 10, 0, -1, -1) |
Geometric data

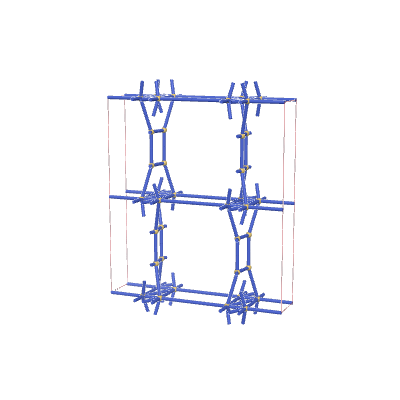

Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 5.59981 | 6.10418 | 1.09278 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.19792 | 0 | 0 |
| 0.23958 | 0.16667 | 0.2 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 3.4905 | 6.00608 | 0.88325 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.14618 | 0 | 0 |
| 0.11825 | 0.16505 | 0.25006 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc2423 | *222222 | (2,8,6) | {4,8} | {4.4.4.4}{4.4.4.4.4.4.4.4} |
