s-net: sqc7465
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 12 |
| Edges per primitive translational unit | 32 |
| Transitivity (vertex,edge) | (3,9) |
| Vertex degrees | {10,3,3} |
| Vertex coordination sequence | [(10, 59, 192, 428, 812, 1354, 2044, 2880, 3864, 4992), (3, 10, 57, 191, 428, 812, 1354, 2044, 2880, 3864), (3, 10, 57, 191, 428, 812, 1354, 2044, 2880, 3864)] |
| Wells’ vertex symbol | [4^16.5^15.6^7.7^6.9, 4^3, 4^3] |
| Systre key | (3, 1, 1, -1, 1, 0, 1, 2, 0, 0, 0, 1, 2, 0, 0, 1, 1, 2, 0, 1, 0, 1, 3, 0, 0, 0, 1, 4, -1, 0, 0, 1, 4, 0, -1, 1, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 2, 2, -1, 0, 0, 2, 6, 0, 0, 0, 2, 6, 0, 0, 1, 2, 6, 1, -1, 1, 2, 7, 0, 0, 0, 2, 8, 0, 0, 0, 3, 5, 1, -1, 0, 3, 7, 0, 0, 0, 4, 4, 0, 0, -1, 4, 6, 0, 0, 1, 4, 6, 0, 1, 1, 4, 6, 1, 0, 1, 4, 9, 0, 0, 0, 4, 10, 0, 0, 0, 5, 8, 0, 1, 0, 6, 6, 0, -1, 1, 6, 11, 0, 0, 0, 6, 12, 0, 0, 0, 7, 8, 1, 0, 0, 9, 10, 0, 0, -1, 9, 11, 0, 0, 1, 10, 12, 0, 1, 1, 11, 12, 0, 1, -1) |
Geometric data

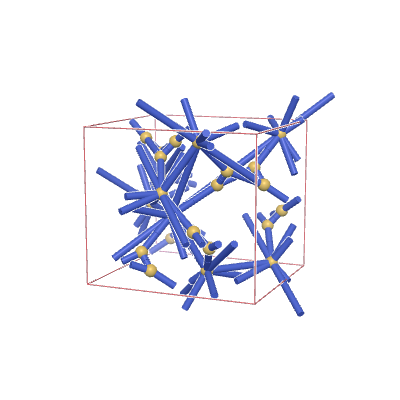

Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: I212121
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.48372 | 2.20776 | 2.22237 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.1125 | 0.41667 | 0.31818 |
| 0.20417 | 0.21667 | 0.10606 |
| 0.12917 | 0.11667 | 0.06061 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: I212121
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 1.57451 | 1.4902 | 1.61681 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.22497 | 0.34435 | 0.20991 |
| 0.33357 | 0.04074 | 0.24075 |
| 0.05158 | 0.07905 | 0.09287 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc2426 | *222222 | (2,8,6) | {10,3} | {4.4.4.4.4.4.4.4.4.4}{4.4.4} |
