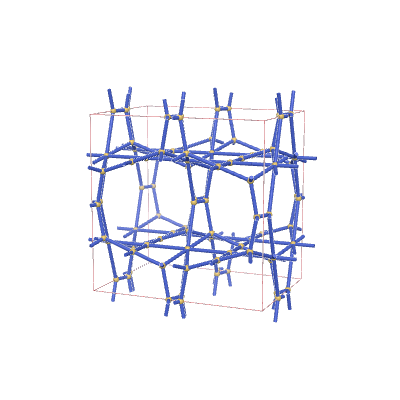

s-net: sqc7931
















					Systre crystallographic geometry file (.cgd)











Links to this net in other databases





			topcryst










Topological data





Vertices per primitive translational unit 14


Edges per primitive translational unit 32


Transitivity (vertex,edge)(6,7)


Vertex degrees {4,4,4,4,8,4}


Vertex coordination sequence  [(4, 15, 22, 60, 69, 139, 141, 251, 238, 396), (4, 15, 22, 61, 72, 142, 144, 254, 240, 398), (4, 8, 26, 36, 88, 96, 186, 182, 314, 290), (4, 7, 24, 36, 90, 90, 184, 200, 314, 252), (8, 14, 40, 50, 104, 110, 200, 194, 328, 302), (4, 16, 24, 62, 72, 142, 144, 254, 240, 398)]


Wells’ vertex symbol [4^5.6, 4^5.6, 4^4.6^2, 4^5.6, 4^10.6^10.8^7.10, 4^4.6^2]


Systre key (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 1, 6, 0, 0, 0, 1, 7, 0, 0, 0, 1, 8, 0, 0, 0, 1, 9, 0, 0, 0, 2, 10, 0, 0, 0, 2, 11, 0, 0, 0, 2, 12, 0, 0, 0, 3, 10, 0, 0, 0, 3, 13, 0, 0, 0, 3, 14, 0, 0, 0, 4, 10, 1, 0, 0, 4, 12, 1, 0, 0, 4, 14, 1, 0, 0, 5, 10, 0, 1, 0, 5, 11, 0, 0, 0, 5, 13, 0, 1, 0, 6, 10, 0, 0, 1, 6, 11, 0, 0, 1, 6, 13, 0, 0, 0, 7, 10, -1, 1, 1, 7, 12, 0, 0, 0, 7, 14, 0, 0, 0, 8, 10, 0, 1, 1, 8, 12, 1, 0, 0, 8, 13, 0, 1, 0, 9, 10, 0, 1, 1, 9, 11, 0, 0, 1, 9, 14, 1, 0, 0)






Geometric data



Systre equilibrium placement (barycentric embedding) maximising unit cell volume





 Spacegroup: Fmmm



 Parameters:



 a   b   c   alpha   beta   gamma



			 5.13601
			 5.08182
			 3.59572
			 90.0
			 90.0
			 90.0








 Vertex positions:




				 X-pos
				 Y-pos
				 Z-pos





						 0.07143
						 0.3125
						 0




						 0
						 0
						 0.375




						 0.25
						 0.25
						 0




						 0.03571
						 0
						 0.5




						 0
						 0.25
						 0.25




						 0.25
						 0.25
						 0.25







Edge end points:











Systre coordinates favouring equal edge-lengths





 Spacegroup: Fmmm




 Parameters:



 a   b   c   alpha   beta   gamma



			 4.12585
			 4.13191
			 3.65729
			 90.0
			 90.0
			 90.0








Vertex positions:




					 X-pos
					 Y-pos
					 Z-pos





							 0.55814
							  0.1406
							  0




							 0
							  0
							  0.27432




							 0.25
							  0.25
							  0.5




							 0.13999
							  0
							  0.5




							 0
							  0.25
							  0.25




							 0.25
							  0.25
							  0.25








Edge end points:















Hyperbolic sources





h-nets with faithful topology




		1 record listed.





			h-net name
			Orbifold symbol
			Transitivity (Vert,Edge,Face)
			Vertex Degree
			2D Vertex Symbol






					Net details
					hqc99

				*248
				 (3,2,1)
				{4,4,8}
				{4.4.4.4}{4.4.4.4}{4.4.4.4.4.4.4.4}











h-nets with edge collapse



 No items to display.
